Mean Well NPF-40-20 LED power supply for LED lighting low power use

Mean Well
Order Code:

05-1300

Brand: Mean Well MPN: NPF-40-20 EAN-13: 4021087025980
Qty Unit Price (Ex VAT)
1+ £20.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

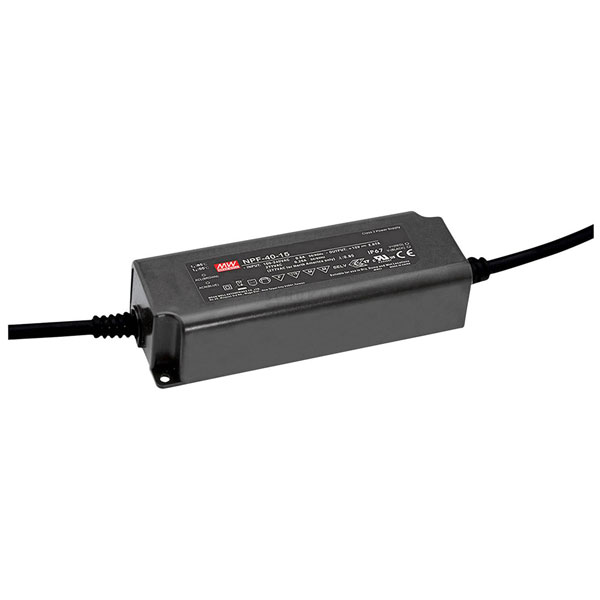

Mean Well manufactures the NPF-40-20, an LED driver and switching power supply with sturdy plastic housing. This LED driver has open-end cable connections and is typically used for powering LED strips and other LED installations. The unit is known for its reliability and compatibility with various LED lighting applications, ensuring stable voltage and current supply.
Type LED driver
Output Voltage 20V
Connection Open end cable
Dim (L x W x H) 235 x 75 x 45 mm
Height 45mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 235mm
Max. output current 2A
Max. power 40W
Min. input voltage 90V AC
Misc Attribute 1 constant voltage+constant current
Misc Attribute 2 switched-mode
Number of Inputs 1
Number of Outputs 1
Output current (details) 2A
Output current (max.) - rounded 2A
Output voltage (max.) 20V DC
Output voltage (min.) 12V DC
Power range 40 W (max)
Protection Class II
Width 75mm
