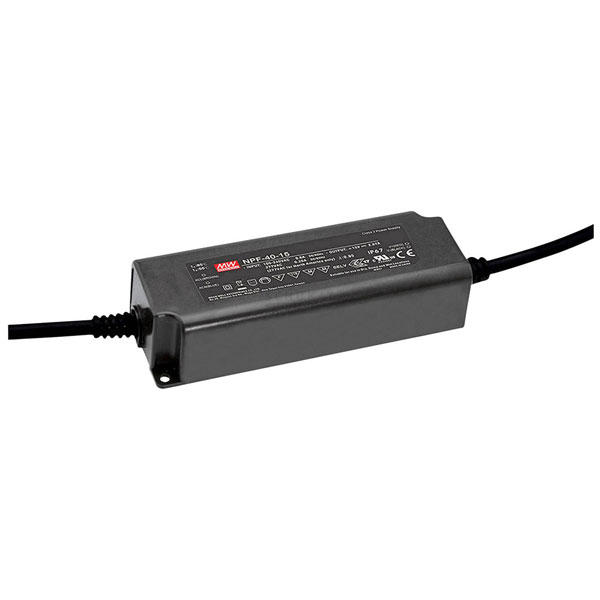

Mean Well NPF-40-12 LED power supply plastic case low standby energy use

Mean Well
Order Code:

05-1299

Brand: Mean Well MPN: NPF-40-12 EAN-13: 4021087026000
Qty Unit Price (Ex VAT)
1+ £25.32
5+ £24.55
10+ £23.79
25+ £23.04
50+ £22.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well NPF-40-12 is a switched-mode power supply featuring a plastic housing, designed for powering LED applications. It offers a stable 12V output, ideal for LED strip lighting and other LED installations. With a robust enclosure and efficient power regulation, it is suited for both indoor and outdoor environments.
Type LED driver
Output Voltage 12V
Connection Open end cable
Dim (L x W x H) 235 x 75 x 45 mm
Height 45mm
Input voltage (max.) 305V AC
IP Rating IP67
Length 235mm
Max. output current 3.34A
Max. power 40W
Min. input voltage 90V AC
Misc Attribute 1 constant voltage+constant current
Misc Attribute 2 switched-mode
Number of Inputs 1
Number of Outputs 1
Output current (details) 3.34A
Output current (max.) - rounded 3.34A
Output voltage (max.) 12V DC
Output voltage (min.) 7.2V DC
Power range 40 W (max)
Protection Class II
Width 75mm
