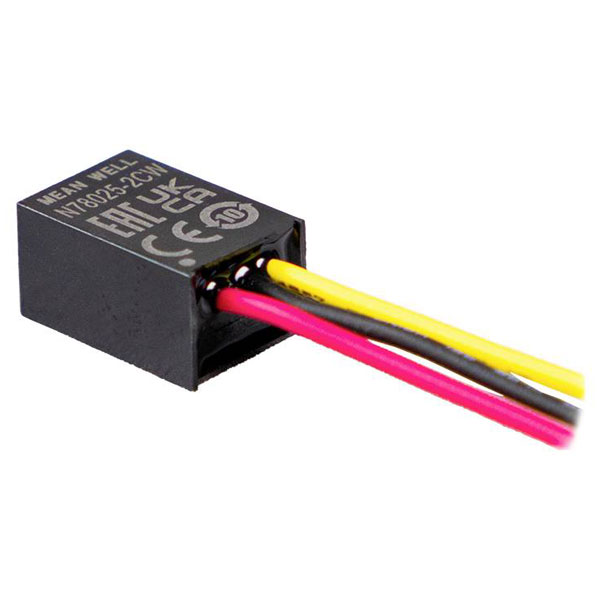

Mean Well N7805-2CW DC-DC converter 5V 2A 10W

Mean Well N7805-2CW is a robust DC-DC converter engineered to transform direct current inputs efficiently into a stable 5V output with a current capacity of 2A, delivering up to 10W of power. This unit provides high conversion efficiency and compact design, making it suitable for integration into printed circuit boards where space and energy efficiency are critical. It finds typical applications in embedded systems, telecommunications equipment, and portable devices requiring reliable voltage regulation. Its consistent performance under varying load conditions makes it an ideal choice for engineers looking to ensure dependable power delivery within their systems.

Power Rating	10W
Connection	Braid
Content	1
Dimensions	(L x W x H) 11.5 x 9 x 17.5 mm
Efficiency (max.)	92%
Height	17.5mm
Input voltage (max.)	32V
Length	11.5mm
Max. output current	2A
Min. input voltage	8V
Operating temperature (max.)	85°C
Operating temperature (min.)	55°C
Output current (max.) - rounded	2A
Output voltage (max.)	5V
Output voltages	5V
Power	10W
Product Type	DC/DC converter
Type	DC/DC converter
Width	9mm
