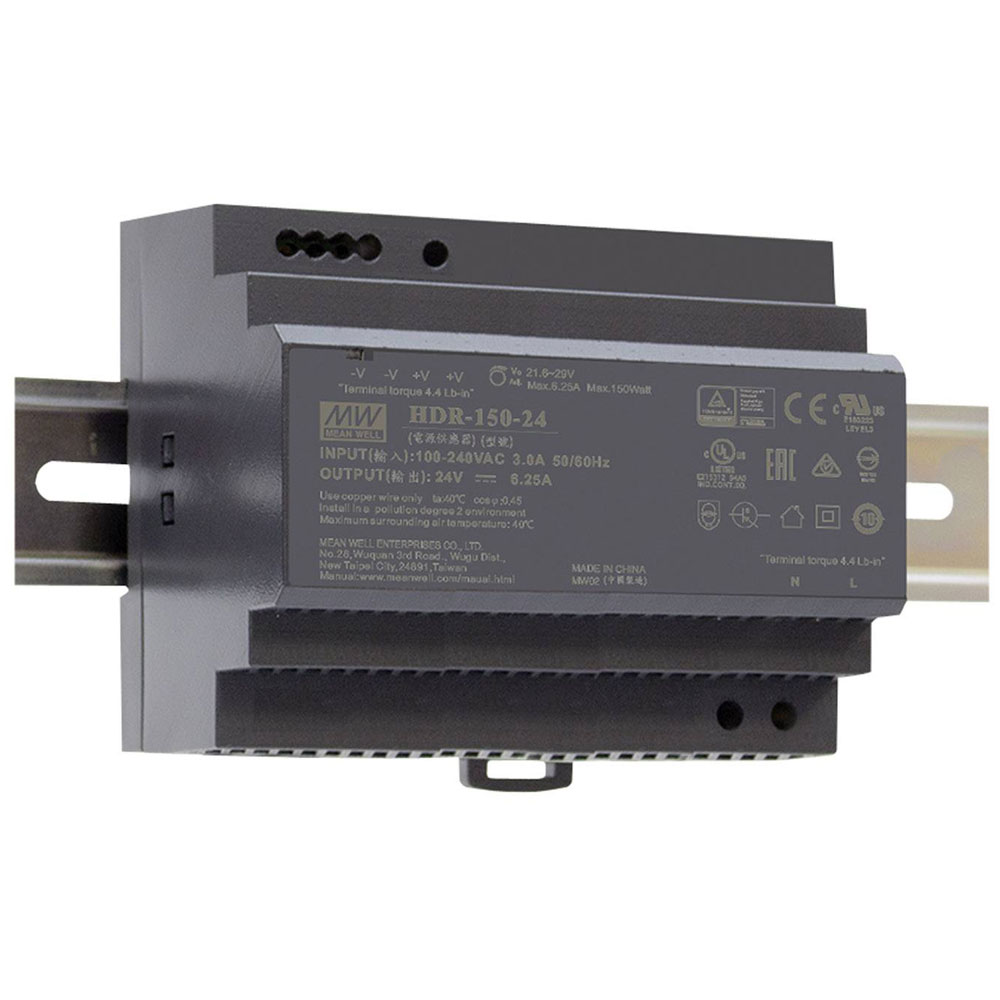

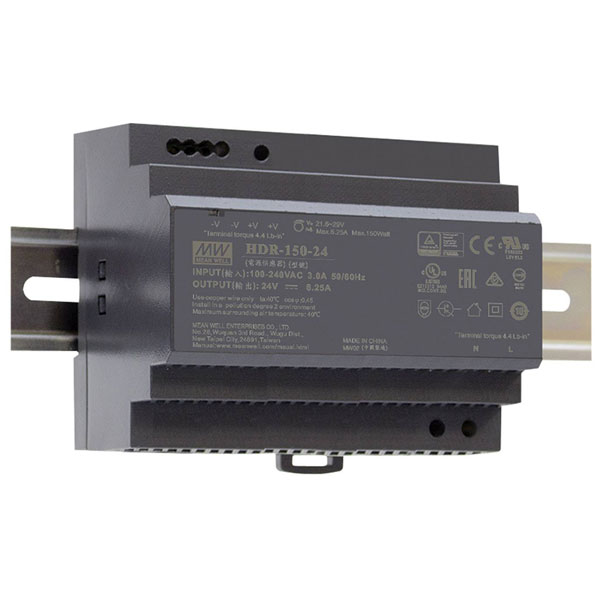

Mean Well HDR-150-24 HDR rail PSU 24V 150W DIN rail-mounted 1 output reinforced

Mean Well
Order Code:

05-0748

Brand: Mean Well MPN: HDR-150-24 EAN-13: 4021087049573
Qty Unit Price (Ex VAT)
1+ £44.41
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

The Mean Well HDR-150-24 is a rail mounted DIN power supply unit designed for industrial applications, providing a 24 V DC output at 150 W. It features a single output with screw terminals for easy installation and reliable connection. Typical applications include use in industrial automation systems, machinery control panels, and other DIN rail mounted systems needing robust power delivery.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Connection Screw terminal
Dim (L x W x H) 105 x 54.5 x 90 mm
Efficiency 90.5%
Height 90mm
Inputs 1
Length 105mm
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 2 Pulsed
MTBF 536000h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output type (power supply units) Adjustable
Output voltage (max.) 29V DC
Output voltage (min.) 21.6V DC
Output voltage (nominal) 24V DC
Phases 1
Power 150W
PSU features Adjustable voltage output
Width 54.5mm
