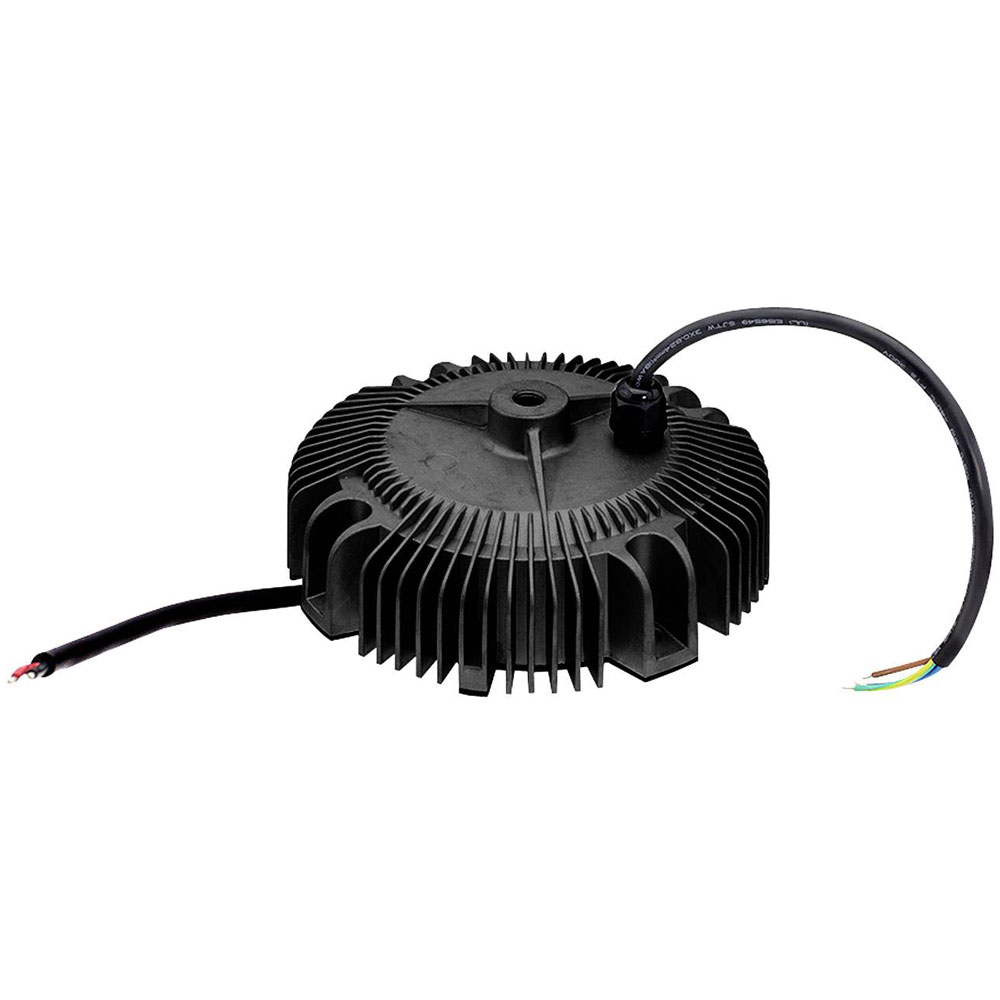

Mean Well HBG-240-36DA LED driver 240W 36V DALI dimmable surge protected

Mean Well
Order Code:

05-0736

Brand: Mean Well MPN: HBG-240-36DA EAN-13: 4021087049719
Qty Was Unit Price (Ex VAT)
1+ £93.70 £90.06
5+ £86.50 £83.14
10+ £82.18 £78.99
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The Mean Well HBG-240-36DA is a constant voltage and constant current LED driver providing 240 W output with a current rating of 6.7 A and a voltage range of 25.2 - 36 V DC. It features DALI dimming, a PFC circuit for outdoor use, and integrated surge and overvoltage protection. This LED driver is ideal for powering and controlling LED strips and other LED lighting applications, especially in outdoor environments.
Type LED driver
Connection Open end cable
Dim (L x W x H) 162 x 162 x 69 mm
Factory colour Black
Height 69mm
Inputs 1
IP Rating IP67
Length 162mm
Max. output current 6.7A
Max. power 240W
Max. temperature +75°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 6.7A
Output voltage (max.) 36V DC
Output voltage (min.) 25.2V DC
Power range 240 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 162mm
