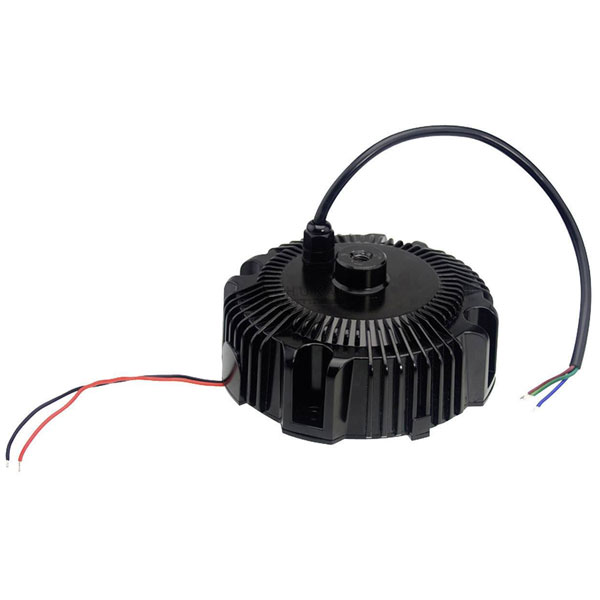

Mean Well HBG-160-48B LED driver 158.4W 48V dimmable waterproof

Mean Well
Order Code:

05-0728

Brand: Mean Well MPN: HBG-160-48B EAN-13: 4021087049849
Qty Was Unit Price (Ex VAT)
1+ £63.57 £63.04
5+ £58.69 £58.20
10+ £55.76 £55.29
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The Mean Well HBG-160-48B is an LED driver providing constant voltage and constant current, rated at 158.4 W, 3.3 A, and 48 V DC. It features a dimmable 3-in-1 dimmer, surge protection, and a PFC circuit, making it suitable for outdoor applications and use on flammable surfaces and furniture. It's ideal for powering LED strips, fixtures, and other lighting installations where safety and reliability are essential.
Type LED driver
Output Voltage 48V DC
Max Output Power 158.4W
Output Current 3.3A
Colour Black
Connection Open end cable
Dimensions (L x W x H) 132 x 132 x 66.5 mm
Height 66.5mm
IP Rating IP67
Length 132mm
Max. output current 3.3A
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
Width 132mm
