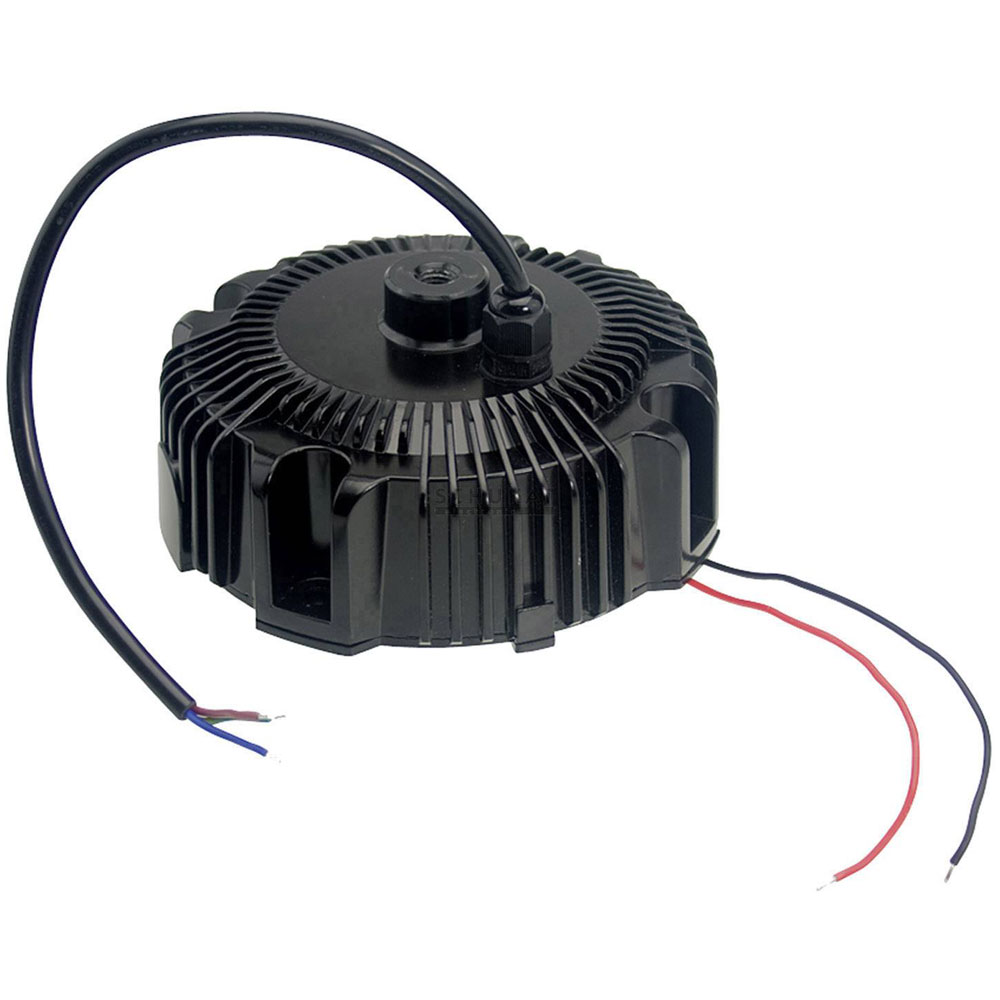

Mean Well HBG-100-60B LED driver 96W 1.6A 36-60V DC dimmable outdoor

The Mean Well HBG-100-60B LED driver delivers a constant current of 1.6 A with a voltage range of 36-60 V DC, making it suitable for powering various LED installations. It features a 3-in-1 dimmer, PFC circuit, surge protection, and is designed for outdoor use, ensuring reliability and flexibility in different environments. Typical applications include LED lighting for both commercial and residential settings, where overvoltage protection and efficiency are essential.

Type	LED driver
Connection	Open end cable
Factory colour	Black
Height	66.5mm
Inputs	1
IP Rating	IP67
Length	132mm
Max. output current	1.6A
Max. power	96W
Max. temperature	+85°C
Min. temperature	-40°C
Misc Attribute 1	Constant current
Misc Attribute 2	Pulsed
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	1.6A
Output voltage (max.)	60V DC
Output voltage (min.)	36V DC
Power range	96 W (max)
Protection Class	I
Test mark	CE, CB, SELV, UL, ENEC
