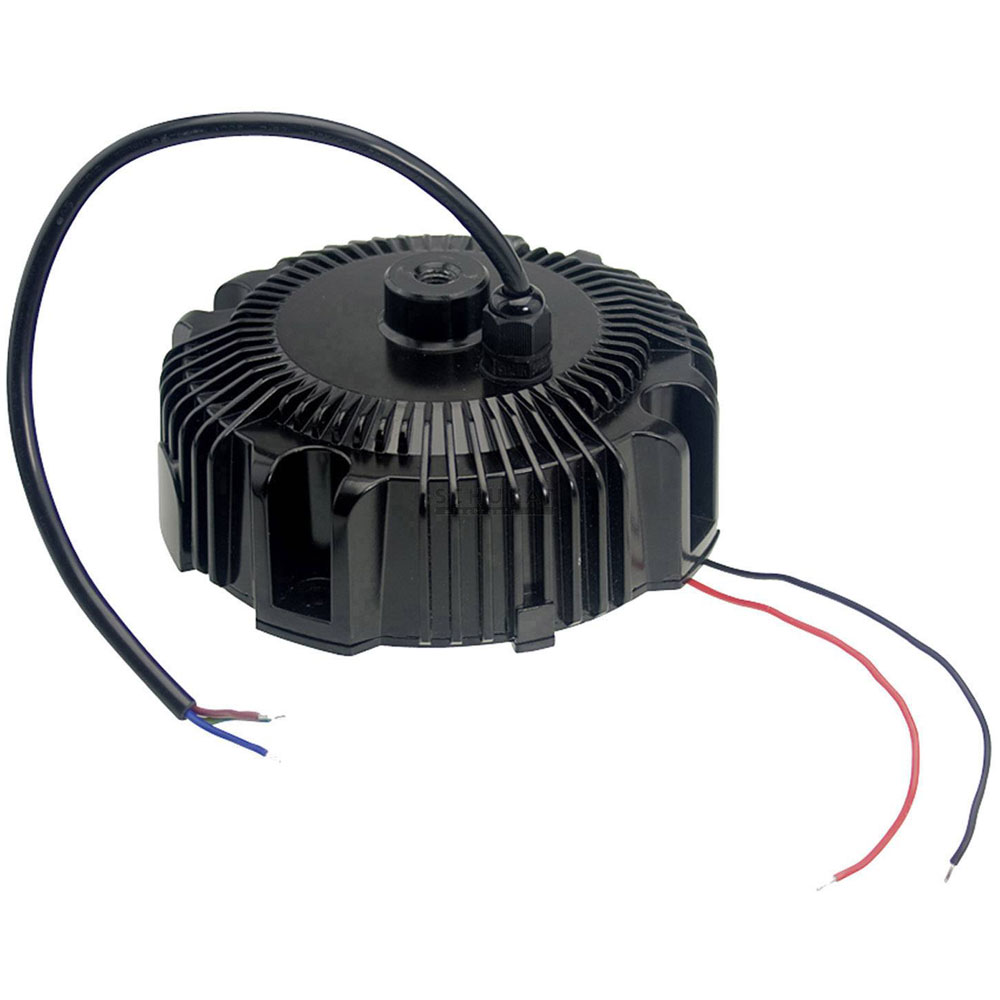

Mean Well HBG-100-24B LED driver 96W 4A dimmable outdoor surge-protected

Mean Well
Order Code:

05-0723

Brand: Mean Well MPN: HBG-100-24B EAN-13: 4021087049962
Qty Was Unit Price (Ex VAT)
1+ £52.02 £43.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

The Mean Well HBG-100-24B LED driver is a constant current, dimmable power supply with a power output of 96 W and a current of 4 A. It features a 3-in-1 dimmer, PFC circuit, surge protection, and overvoltage protection for reliable operation in outdoor applications. The driver is ideal for powering LED systems and strips, providing a voltage range of 14.4 - 24 V DC.
Type LED driver
Connection Open end cable
Factory colour Black
Height 66.5mm
Inputs 1
IP Rating IP67
Length 132mm
Max. output current 4A
Max. power 96W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 4A
Output voltage (max.) 24V DC
Output voltage (min.) 14.4V DC
Power range 96 W (max)
Protection Class I
Test mark CE, CB, SELV, UL, ENEC
