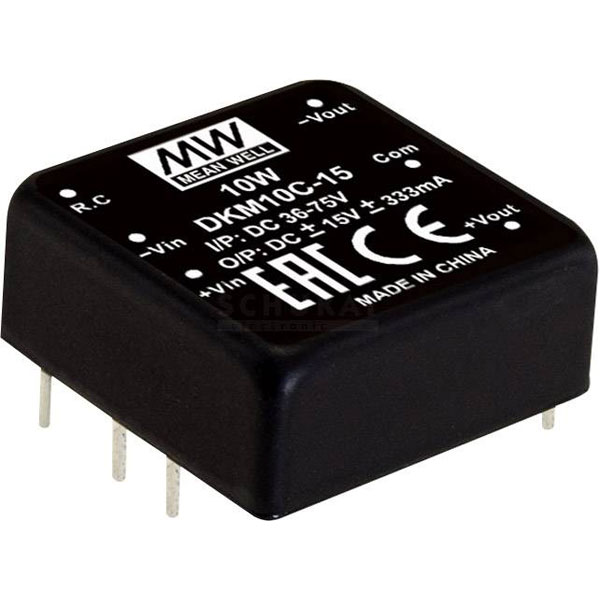

Mean Well DKM10C-15 DC/DC converter 10W 333mA dual output high density

Mean Well
Standard range
Order Code:

05-0349

Brand: Mean Well MPN: DKM10C-15
Qty Unit Price (Ex VAT)
1+ £19.84
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Mean Well DKM10C-15 is a DC/DC converter module capable of delivering 333 mA and 10 W, with two outputs. This converter is suitable for applications requiring stable voltage conversion, such as telecommunications and industrial control systems. Manufactured by Mean Well, it is designed for efficient current conversion in printed circuit boards.
Type DC/DC converter (module)
Connection Pins
Dim (L x W x H) 25.4 x 25.4 x 10.2 mm
Efficiency (max.) 89%
Height 10.2mm
Input voltage (max.) 75V DC
Insulation voltage 1500V DC
Length 25.4mm
Max. output current 333mA
Min. input voltage 36V DC
Misc Attribute DKM10C-15
No. of outputs 2
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 333mA
Power 10W
PSU features DC-to-DC converter
Weight 18g
Width 25.4mm
