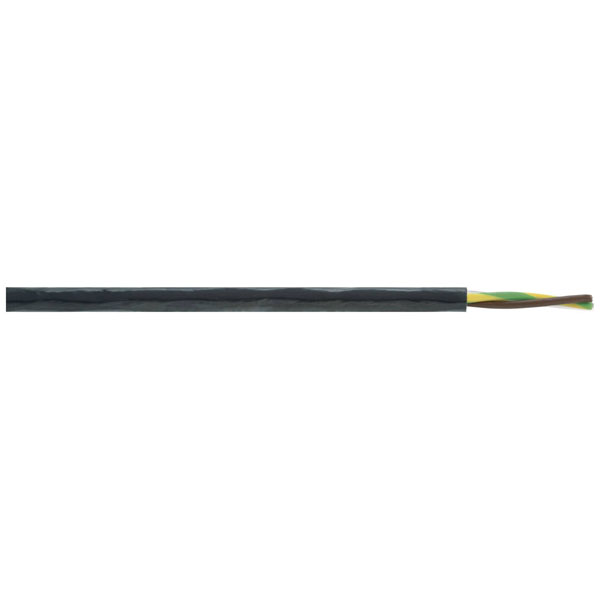

LAPP 91315/1 HEAT 260 MC high-temp cable, 3G1.50mm², black, sold/m

LAPP
Order Code:

67-5850

Brand: LAPP MPN: 91315/1 EAN-13: 2050000204357
Qty Unit Price (Ex VAT)
1+ £10.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
135 in stock, despatched in 4 working days

Space and weight-saving installation through thin cable-Ø. Stress-crack proof upon fluctuation of the ambient temperature. Low gas-emission behavior. Wires stranded together. Application areas: In raw ambient conditions, such as in painting plants, etc.
Insulation material Polytetrafluoroethylene (PTFE)
Bend radius For flexible use: 15 x external Ø.; when laid fixed: 4 x external Ø.
Bend radius (no. of ODs for fixed installation) 4
Bend radius (no. of ODs for flexible installation) 15
Core layout Finely stranded according to VDE 0295, Class 5/IEC 228 Class 5
Cross section (each core) 1.50mm²
Factory colour Black
Halogen-free No
Insulation resistance > 1 TΩ x cm
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +260°C
Min. temperature range (fixed installation) -190°C
Misc Attribute 1 OILFLEX® HEAT 260 MC PTFE
Misc Attribute 2 ÖLFLEX® HEAT 260 MC PTFE
No. of leads 3 G
Nominal voltage 500V
Nominal voltage (details) U0/U: 300/500V
Nominal voltage U0 300V
Outside Ø 5.90mm
Packaged No
Sold per metre Yes
Temperature range -190 - +260 °C, short term: +300°C
Test voltage 3400V
Type Heat Cable
Wire ID code Coloured according to VDE 0293-308
