LAPP 53019021 SKINTOP GMP-GL PG11 Locknut Light Grey

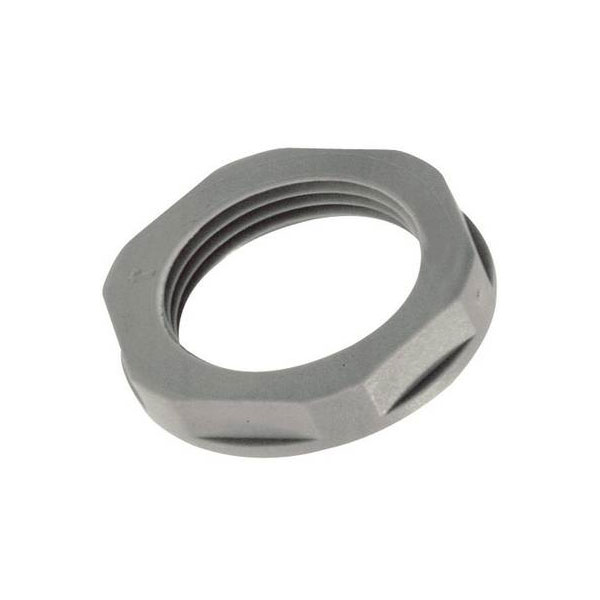

Image Representative of Range

LAPP 53019021 SKINTOP GMP-GL PG11 Locknut Light Grey

LAPP
MPN
53019021
Brand
LAPP
EAN-13
2050000954771
Order Code
49-1602
Country of Origin
Switzerland
View Full Product Range (14)
Qty Unit Price (Ex VAT)
50+ £0.158
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Despatched within 4 working days - 4,495 in stock

This LAPP SKINTOP® locknut is used for locking a cable gland in a borehole without a thread. The hexagonal locknut is equipped with a special collar, which stops the spanner from slipping, and also prevents scratches on the housing. The glass fibre-reinforced construction, gives maximum mechanical stability.


  • PA Plastic locknut, glass-fibre reinforced with coil
  • Colour: Light grey (RAL 7035)
  • Material: Polyamide, fibreglass reinforced
  • Size: PG11
  • Temperature range: -20°C to +100°C
  • Supplied in light grey
  • Manufacturer's part: SKINTOP® GMP-GL11
Thread Size PG11
Colour Grey
Material Polyamide glass fibre reinforced
IP Rating n/a
Type Locknut
Bend Radius Protection/Trumpet Flare No
Dimensions PG11
EMC-version No
Explosion-tested version No
Flat cable sealing No
For armoured cable No
Glass fibre reinforced Yes
Halogen free No
Locknut Included No
Material Grade Polyamide (PA)
Maximum Temperature +100°C
Min. temperature -20°C
Model Type Other
Multi cable sealing No
Nominal Thread Size Metric/PG 11
RAL Number 7035
Screened No
Separable (split) screw gland No
Shock resistant Yes
Snapping in opening No
Surface protection Untreated
Thread Length 5mm
Thread Type PG
With strain relief No
Working temperature -20°C - 100°C
Wrench width 24mm
