LAPP 53015640 SKINTOP BS PG16 Screwed Cable Gland Spiral Grey

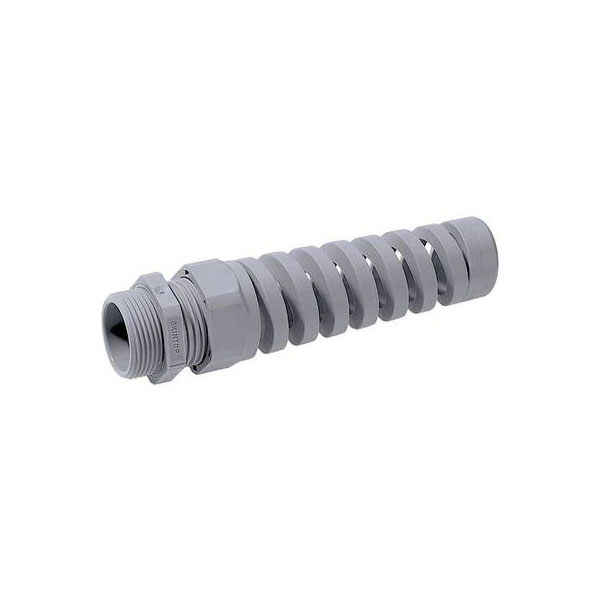

Image Representative of Range

LAPP 53015640 SKINTOP BS PG16 Screwed Cable Gland Spiral Grey

LAPP
MPN
53015640
Brand
LAPP
EAN-13
4044773160246
Order Code
49-1269
Country of Origin
Germany
View Full Product Range (7)
Qty Unit Price (Ex VAT)
3+ £1.38
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Despatched within 4 working days - 77 in stock

This LAPP SKINTOP® BS PG16 Screwed Cable Gland has a bending protection spiral. The cable gland is used for securing flexible cables on hand tools and moving machine parts. The bend protection is an important feature for cable care and functional safety.

Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0730.


  • Plastic screwed gland with PG threading
  • Bend protection spiral for additional functional security
  • Clamping range diameter: 9 - 14mm
  • Colour: Silver-grey (RAL 7001)
  • Material: Body: Polyamide, seal: CR
  • Protection type: IP68 (up to 5 bar)
  • Size: PG16
  • Temperature range: -20ºC to +80ºC
  • Type: SKINTOP® BS 25 PG16
Thread Size PG16
Colour Grey
Material Polyamide
IP Rating IP68
Type Aint-kink spiral
Maximum Temperature +80°C
Min. temperature -20°C
