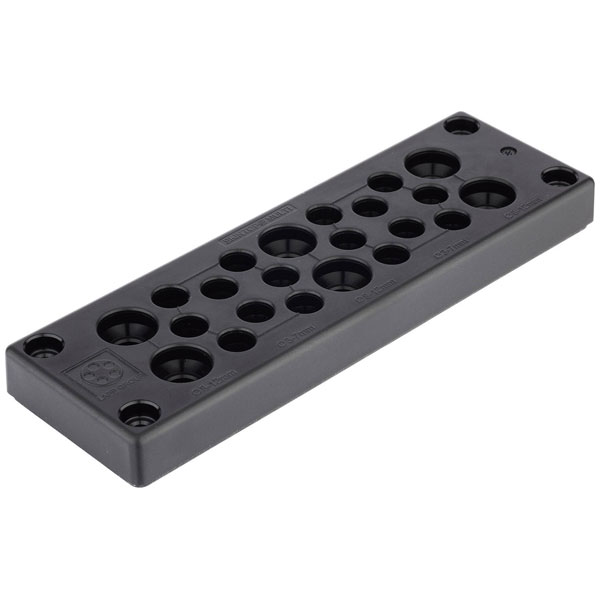

LAPP 52220065 Multi-cable feedthru terminal Ø16mm max PC 1 pc

Introducing the LAPP 52220065 Multi-Cable Bush system, designed to provide efficient and secure cable management. This bush system accommodates cables with a maximum diameter of 16mm, ensuring a versatile solution for various applications. Made from high-quality polycarbonate (PC), it offers durability and reliability.

Type	Cable Gland
Clamp Diameter	2mm
Diameter	16mm
Height	46mm
IP Rating	IP66, IP67, IP68
Length	144mm
Material	Polycarbonate (PC)
Maximum Temperature	110°C
Min. temperature	-30°C
Misc Attribute 1	5 x 2 - 6 mm, 8 x 4-8 mm, 3 x 5 - 9 mm, 2 x 8 - 12 mm, 1 x 12 - 16 mm, 2 x ASI bus or 2 x 2 - 4 mm
Misc Attribute 2	SKINTOP® MULTI Version 1
Panel Hole Diameter	46 x 144 mm
Panel Thickness	14mm
