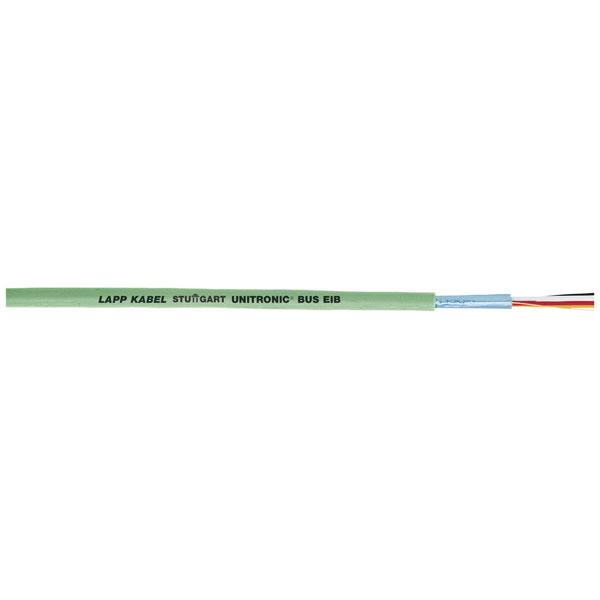

LAPP 2170240/100 BUS cable 2x2x0.80mm² Green 100m, versatile use

LAPP
Order Code:

67-6165

Brand: LAPP MPN: 2170240/100 EAN-13: 4044774750224
Qty Unit Price (Ex VAT)
1+ £81.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 09/01/2026

Data transfer is performed serially. Basically, the EIB installation consists of sensors = issuers of commands (such as light barriers, switches, thermostats, infrared, wind meter, timer clocks) and actors = command receivers (e.g. motors, heating, fans, lamps, blinds). The EIB bus cable can be laid on, in and under plaster, in pipes and cable channels, in dry, damp and wet rooms.
Colour Green
Insulation Material PVC
Type UNITRONIC® BUS
Bend radius 10 x external dia., when permanently installed
Bend radius (no. of ODs for fixed installation) 10
Cable Diameter 6.60mm
Cable features Shielded
Conductor Cross-section 0.80mm²
Halogen-free No
Max. temperature range (fixed installation) +70°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -30°C
Min. temperature range (flexible installation) -30°C
Misc Attribute 1 UNITRONIC BUS EIB 2X2X0,8
Misc Attribute 2 For fixed installation
Number of leads 4
Operating capacity (800 Hz) max. 100 nF/km
Packaged Yes
Peak operating voltage (not for heavy current applications) 250V
Shielded Yes
Sold by Metre No
Standards EIB
Temperature Range When permanently installed: -30 - +70°C
Test voltage Ader/Ader: 4000V
Twisted pair cabling (part 1) Yes (1)
