Kabeltronik 090240708 Strand UL 11028 1x0.22 mm² Red 250m

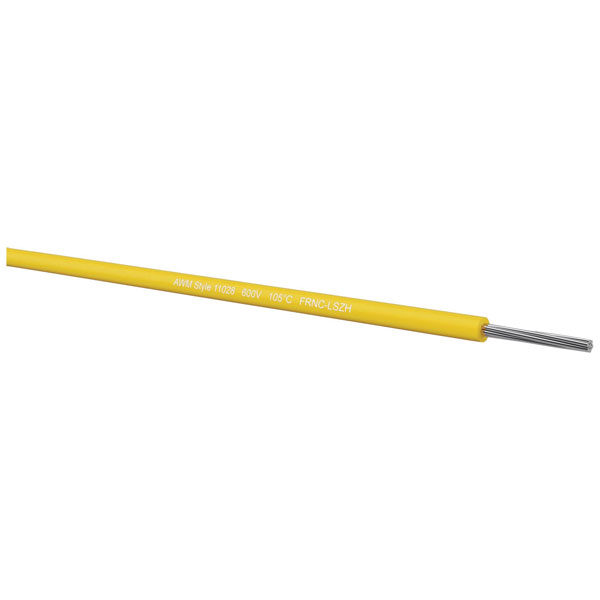

Image Representative of Range

Kabeltronik 090240708 Strand UL 11028 1x0.22 mm² Red 250m

Kabeltronik
Extended range
Order Code:

04-5017

Brand: Kabeltronik MPN: 090240708
Qty Was Unit Price (Ex VAT)
1+ £93.35   £79.89
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

The Kabeltronik 090240708 Strand is a wiring braid with a cross-section of 1 x 0.22 mm² that comes in a 250 m roll. This red braid wire is ideal for internal and switchboard wiring applications. It features durable insulation suitable for a variety of electrical installations.
Insulation material TPE
AWG 24
Bend radius (no. of ODs for fixed installation) 10
Bend radius (no. of ODs for flexible installation) 15
Cable type UL 11028
Certification marks UL, cUL
Core layout 7 x 0.20 mm
Cross section 1 x 0.22 mm²
Cross section (each core) 0.22mm²
Factory colour Red
Halogen-free Yes
Manufacturer part # 090240708
Max. temperature range (fixed installation) +105°C
Max. temperature range (flexible installation) +105°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -20°C
Misc Attribute 090240708
No. of leads 1
Nominal voltage 600V
RoHS-compliant Yes
Test voltage 6000V
Type Strand
