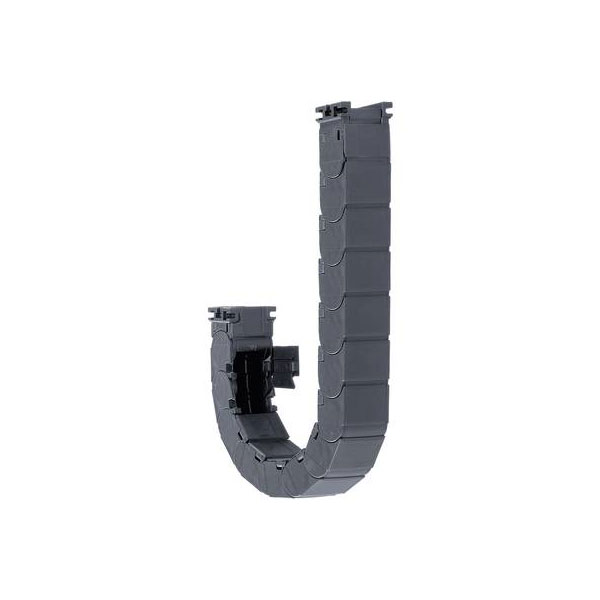

igus 117.080.075.0 Easy Chain 1000mm

The igus 117.080.075.0 is a Fully Enclosed Energy Tube from the E-ChainSystem® Series. This e-chain can be used to protect cables and hoses against the hot metal debris, wood chips, dirt and dust generated in steel works, wood-processing plants, pulp factories, textile manufacturing, farming, coal-fired plants, and many other demanding environments.

• Suitable for applications involving slow to medium speeds
• Snap-open on both sides in the inner radius
• Effective chip protection, even against hot metal chips
• Smooth, chip-repellent exterior
• Double stop dog for strong unsupported length
• Snap-open from the side, covered pin/bore connection
• Lateral glide surfaces for side-mounted operation
• Snap-open from the side, covered pin/bore connection
• Universal KMA mounting brackets with attachment capability on all sides
• Snap-open lids along the inner or outer radius
• Supplied in lengths of 1000mm
• Supplied with an Inner Width of 80mm
• Supplied with a Bending Radius of 75
• Supplied with a Pitch of 30.5mm
• Manufacturer's part: igus 117.080.075.0
