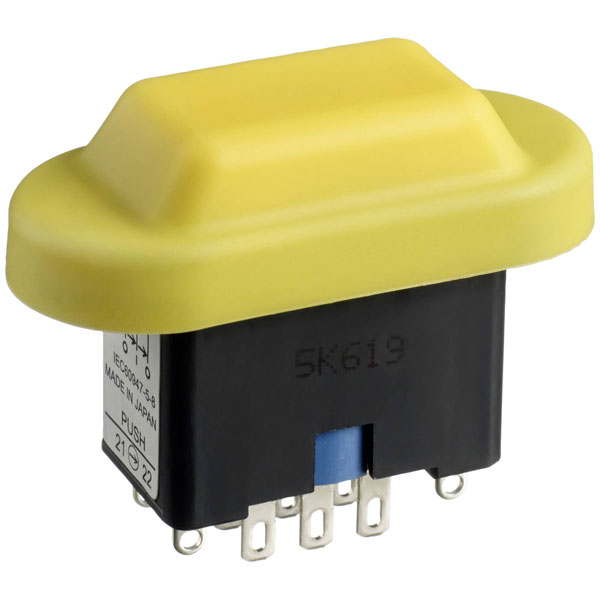

IDEC HE6B-M211Y Toggle Switch 125V AC 30V DC On/Off/On IP40.

The Idec HE6B-M211Y Toggle switch is designed for durability and efficiency, featuring a 125 V AC and 30 V DC rating with a 3 A capacity. It has a latching On/Off/On functionality and an IP40 front protection rating, measuring 54 mm x 25 mm, making it suitable for various industrial and commercial applications. This switch is ideal for controlling circuits where reliable and straightforward toggle operations are required.

Mounting Type	N/A
Contact Configuration	1 x On/Off/On
Switch Function	latch
Current Rating (Amps)	3A
Illumination Type	N/A
Illumination Colour	Non-Illuminated
Actuator Colour	Yellow
Casing/button colour	Black/yellow
Contact Type	2 change-overs
Dim	(L x W) 54 mm x 25 mm
IP Rating	IP40 (Front)
Length	54mm
Max. temperature	+60°C
Min. temperature	-25°C
Recess Diameter	16.2mm
Type	Toggle switch
Width	25mm
