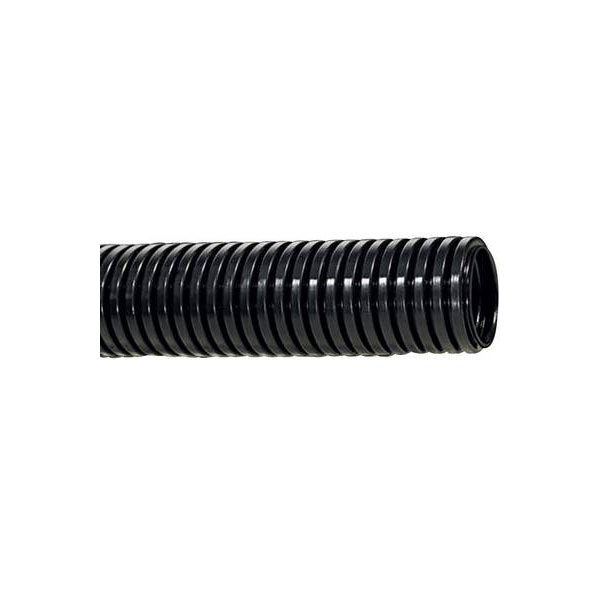

HellermannTyton 166-11204 HG-LW21 HelaGuard PA6 Conduit 21mm Nonimal Diameter

The HellermannTyton HelaGuard 166-11204 HG-LW21 is a Lightweight Non-Metallic Conduit from the HG-LW Range. The conduit is highly flexible and has a small bending radius. Ideal for applications in machine building, plant construction, control panels and public buildings, wherever lower mechanical protection is required. The conduit can also be used in moving applications.

• Halogen-free: Yes
• Material: Polamid 6 PA6
• Specification: HelaGuard Light
• Operating temperature: -40°C to +120°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 21mm
• Outside diamater: 21.2mm
• Inside diamater: 16.9mm
• Bending radius: 40mm
• Supplied in lengths of 1m
• Supplied in Black UV Resistant
• Type: HG-LW Range
• Manufacturer's part: 166-11204 HG-LW21 HelaGuard

This conduit will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of conduit will result in a single 7-metre conduit being supplied, not 7 one-metre lengths.

Type	Conduit
Colour	Black
Length	n/a
Material	Polyamide 6
Internal Diameter	21mm
Bending radius	STRONG40mm/STRONG
Diameter	16.7mm
