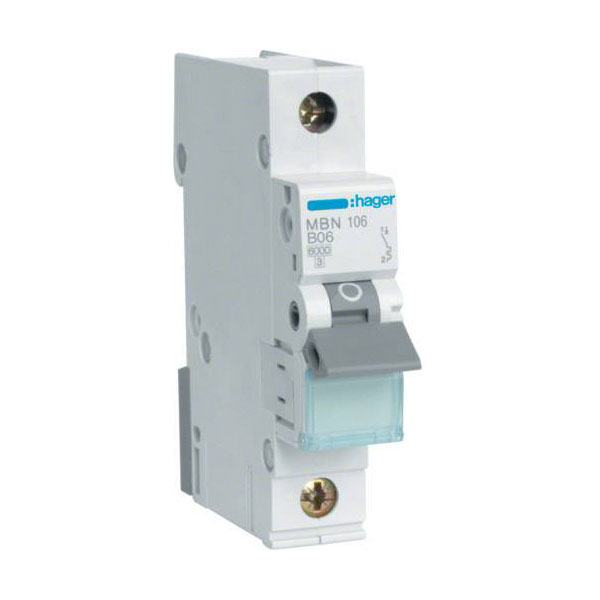

Hager MBN106 Circuit Breaker 6A 230/400V IP2x Thermal & Short-Circuit Protection

Hager
Order Code:

03-8329

Brand: Hager MPN: MBN106 EAN-13: 3250614310065
Qty Unit Price (Ex VAT)
1+ £9.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
24 in stock, despatched in 4 working days

The Hager MBN106 circuit breaker is a single-phase device with a 6 A rating, suitable for 230 V and 400 V systems. Manufactured by Hager, it ensures protection against electrical overloads in residential and commercial settings. This circuit breaker is ideal for safeguarding electrical circuits and preventing damage from short circuits and excess current.
Type Circuit breaker
Additional equipment possible false
Ambient temperature during operating -25 - 70°C
Built-in depth 70mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 25mm²
Connectable conductor cross section solid-core 1 - 35mm²
Current limiting class 3
Current Ratng 6A
Degree of protection (IP) IP20
Explosion-proof false
Factory colour Grey
Flush-mounted installation true
Frequency 50 - 60Hz
Model 1-phase
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Power loss 1.30W
Rated current 6A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 400V
Release characteristic B
Release characteristics B
Switch-off capacity 6kA
Voltage Rating 230 V - 400V
Voltage type AC
Width in number of modular spacings 1
