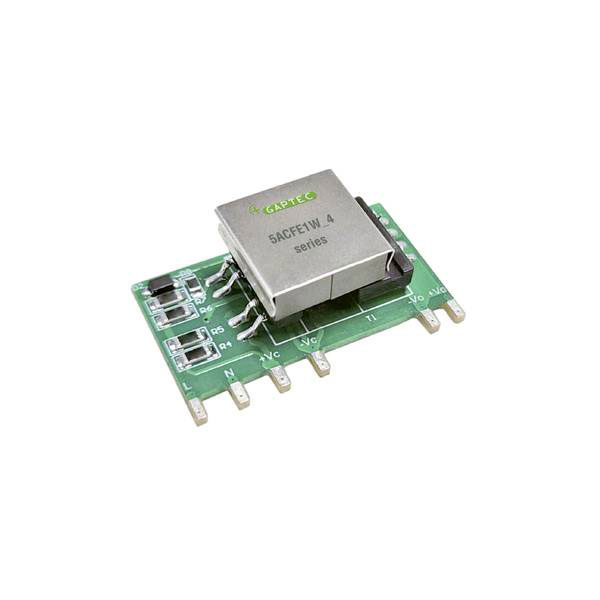

Gaptec 5ACFE1W_05S4 AC/DC converter 5V DC 1000mA 5W

Gaptec 5ACFE1W_05S4 is a high-performance AC/DC converter designed for use in computer power supply units, providing a steady 5 volts DC output at a current of up to 1000 milliamperes, delivering a total power of 5 watts. This compact and efficient converter is suitable for a variety of engineering applications, particularly where space and power efficiency are crucial, such as in embedded systems and small electronic devices. With features including a wide input voltage range and robust galvanic isolation, the Gaptec 5ACFE1W_05S4 ensures reliable power conversion and enhanced safety in complex electronic circuits. This versatility makes it well-suited for integration into industrial automation projects, telecommunications equipment, and other applications requiring consistent DC power from an AC source.

Output Power Max	5W
Output Voltage	5V DC
Dimensions	(L x W x H) 33.5 x 13.5 x 20.0 mm
Efficiency	74%
Enclosure	SIP 6
Height	20.0mm
Insulation Voltage	4kV
Length	33.5mm
Max. output current	1000mA
Maximum Operating Temperature	85°C
Operating temperature (min.)	-40°C
Output Current	1A
Product Type	AC/DC converter
Type	5ACFE1W_4
Weight	35g
Width	13.5mm
