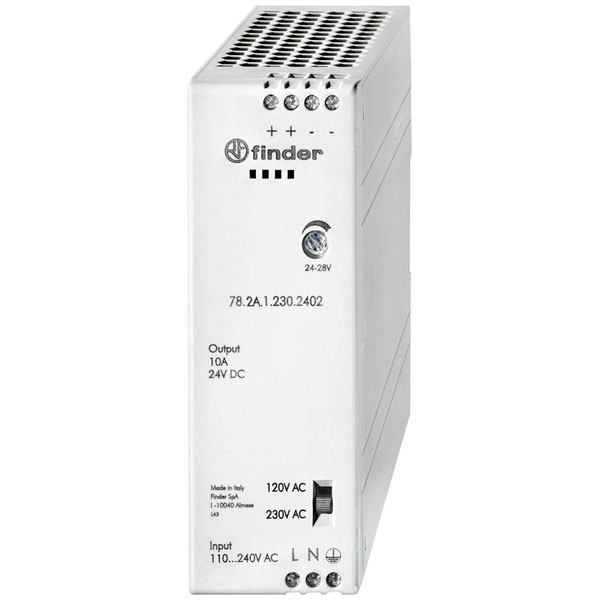

Finder 78.2A.1.230.2402 Rail PSU 24 V DC 10 A high efficiency 94%

The Finder 78.2A.1.230.2402 is a rail mounted power supply unit designed for industrial applications, providing a robust output of 24 V DC at 10 A with a total power of 240 W. This DIN rail PSU is ideal for integration into control panels and automation systems, ensuring reliable power distribution. It's commonly used in environments where consistent and efficient power delivery is essential.

Type	Rail mounted PSU (DIN)
Output Voltage	24V DC
Output Current	10A
Power Rating	240W
1st secondary output voltage	24 - 28V
Built-in height	N/A
Built-in width	N/A
Connection	Screw terminal
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Dim	(L x W x H) 125 x 42.5 x 132.3 mm
Direct mounting possible	N/A
Height	132.3mm
IP Rating	IP20
Length	125mm
Max. output current	10A
Max. output current 1	10A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Temperature	+60°C
Min. temperature	-20°C
Misc Attribute 2	Switched PSU
Nominal value output current 1	9A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Output type (power supply units)	Adjustable
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	None
Power Consumption	361VA
Power Output	240W
Rated supply voltage AC 50 Hz	230 - 230V
Rated supply voltage AC 60 Hz	230 - 230V
Secondary voltage adjustable	false
Short-circuit-proof	true
SIL according to IEC 61508	None
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	false
Type of electric connection	Screw connection
Voltage type (supply voltage)	AC
Wall mounting possible	false
Width	42.5mm
Width in number of modular spacings	N/A
