Finder 78.25.1.230.2400 Rail PSU 24 V 1 A 25 W 35 mm thermal protection

Finder
Order Code:

03-4424

Brand: Finder MPN: 78.25.1.230.2400 EAN-13: 8012823421902
Qty Unit Price (Ex VAT)
1+ £41.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
24 in stock, despatched in 4 working days

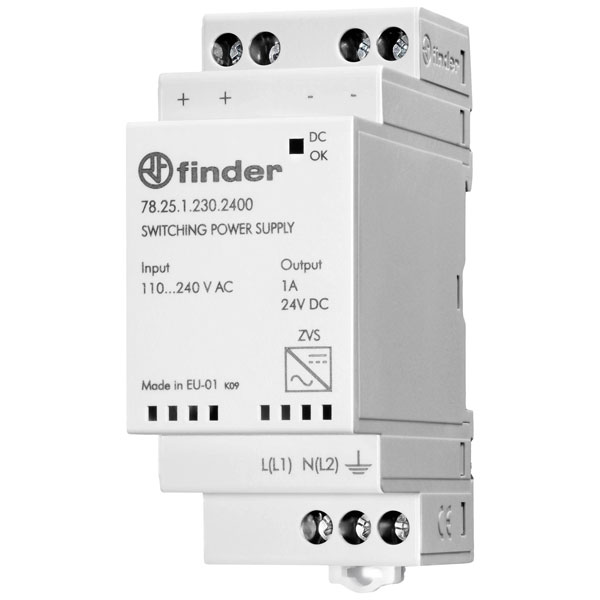

The Finder 78.25.1.230.2400 is a rail-mounted power supply unit designed for industrial applications. It delivers 24 V DC output at 1 A with a power rating of 25 W. This unit is ideal for providing reliable power in automation systems and electrical panels.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 1A
Power Rating 25W
1st secondary output voltage 24 - 24V
Built-in height N/A
Built-in width N/A
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 56.5mm
Direct mounting possible N/A
Efficiency 89%
Height 84mm
Input Voltage 110 - 240V AC
IP Rating IP20
Max. output current 1A
Max. output current 1 1A
Max. output current 2 N/A
Max. output current 3 N/A
Max. temperature +60°C
Min. input voltage 110V AC
Min. temperature -20°C
Misc Attribute 2 Switched PSU
Nominal Input Voltage 110 - 240 V/AC
Nominal value output current 1 0.75A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Output voltage stabilized false
Performance level according to EN ISO 13849-1 None
Power Consumption 56.4VA
Power Output 25W
Rated supply voltage AC 50 Hz 110 - 240V
Rated supply voltage AC 60 Hz 110 - 240V
Rated supply voltage DC 220 - 220V
Secondary voltage adjustable false
Short-circuit-proof true
SIL according to IEC 61508 None
Stabilized true
Suitable for distribution board true
Suitable for rail mounting true
Suitable for safety functions false
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Wall mounting possible false
Width 35mm
Width in number of modular spacings 2
