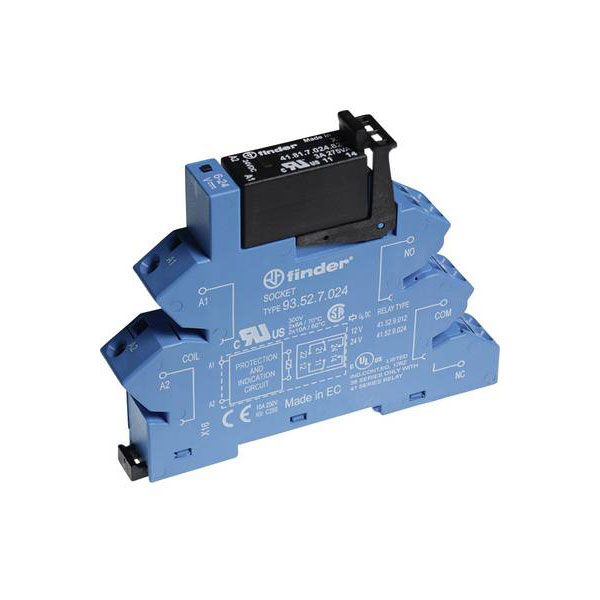

Finder 38.41.7.024.8240 SSR Relay 1 contact 3A 230V AC 24V DC coil

The Finder SSR 38.41.7.024.8240 is a solid state relay designed for reliable electronic switching in industrial applications. It features zero crossing technology to minimise electrical noise and is ideal for controlling resistive and inductive loads. This semiconductor switch is widely used in automation systems and HVAC equipment.

Type	SSR
Input Voltage	24V DC
Contact Configuration	SPST-NO
Switching Voltage	275V AC
Control voltage (min.)	24V DC
Max. output current	3A
Number of Phases	1
Operating Voltage	12 - 275
Output voltage (min.)	12V AC
Rated control supply voltage DC	24 - 24V
Rated operation current Ie at AC-1	3A
Rated operation current Ie at AC-3	N/A
Rated operation current Ie at AC-51	N/A
Rated operation current Ie at AC-53a	N/A
Rated operation current Ie at AC-53b	N/A
Suitable for distribution board	true
Switching at zero-crossing	false
Voltage type for actuating	DC
