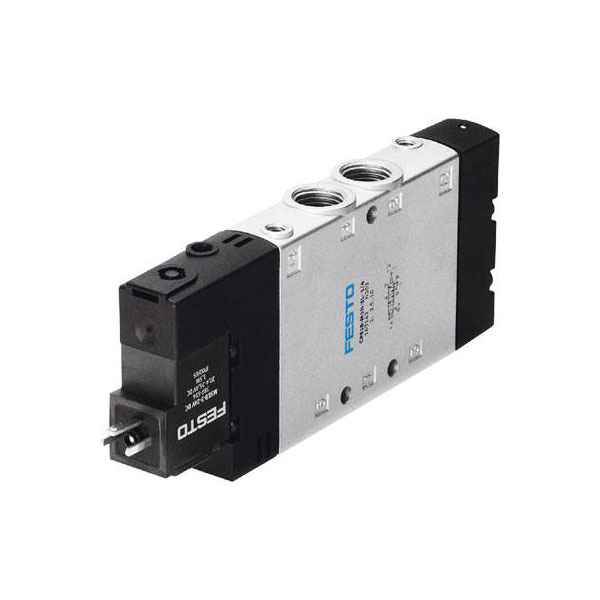

FESTO Pneumatic Valves Magnetic valve 612405

FESTO Brand: FESTO
FESTO manufactures energy-efficient CPE magnetic valves designed for durability and various nominal widths.
Description Image Product Buy Pricing (Ex VAT) Maximum Operating Pressure Minimum Operating Pressure Connection Function Misc Attribute Nominal width Width Type Enclosure material IP Rating Max. ambient temperature Max. media temperature Media temperature (min.) Media temperature (range) Min. ambient temperature Operating medium Sealant
FESTO 163142 CPE magnetic valve G 1/4 8 mm nominal width energy saving
FESTO 163142 CPE magnetic valve G 1/4 8 mm nominal width energy saving
Standard range
Order code: 03-2298
MPN: 163142

2 in stock, despatched in 4 working days
1+ £170.28
Price per unit Ex VAT 		10bar 2.5bar G 1/4 5/2 mono-stable Normal rated flow: 1500 l/min 8mm 18mm Magnetic valve Aluminium (die-cast) IP65 50°C 50°C -5°C -5 up to 50 °C -5°C According to ISO 8573-1:2010 compressed air [7:4:4] NBR
FESTO 196846 CPE magnetic valve 4mm energy-saving durable
FESTO 196846 CPE magnetic valve 4mm energy-saving durable
Extended range
Order code: 03-2630
MPN: 196846

Available to back order
1+ £221.01
Price per unit Ex VAT 		8bar 2.5bar 3/2 normally closed mono-stable Normal rated flow 190 l/min 4mm 10mm Magnetic valve Aluminium (die-cast) IP65 50°C 50°C -5°C -5 up to 50 °C -5°C According to ISO 8573-1:2010 compressed air [7:4:4] NBR
FESTO 196929 CPE magnetic valve G 1/8 6mm width energy efficient
FESTO 196929 CPE magnetic valve G 1/8 6mm width energy efficient
Standard range
Order code: 03-2632
MPN: 196929

3 in stock, despatched in 4 working days
1+ £149.06
Price per unit Ex VAT 		8bar 2.5bar G 1/8 3/2 normally closed mono-stable Normal nominal flow rate: 900 l/min 6mm 14mm Magnetic valve Aluminium (die-cast) IP65 50°C 50°C -5°C -5 up to 50 °C -5°C According to ISO 8573-1:2010 compressed air [7:4:4] NBR
FESTO 196939 CPE Magnetic valve 6mm wide energy-saving high flow
FESTO 196939 CPE Magnetic valve 6mm wide energy-saving high flow
Standard range
Order code: 03-2633
MPN: 196939

2 in stock, despatched in 4 working days
1+ £215.24
Price per unit Ex VAT 		8bar 2bar G 1/8 5/2 bi-stable Normal nominal flow rate: 800 l/min 6mm 14mm Magnetic valve Aluminium (die-cast) IP65 50°C 50°C -5°C -5 up to 50 °C -5°C According to ISO 8573-1:2010 compressed air [7:4:4] NBR
FESTO 196941 CPE magnetic valve G 1/8 6 mm energy-saving robust
FESTO 196941 CPE magnetic valve G 1/8 6 mm energy-saving robust
Standard range
Order code: 03-2634
MPN: 196941

5 in stock, despatched in 4 working days
1+ £157.53
Price per unit Ex VAT 		8bar 3bar G 1/8 5/2 mono-stable Normal nominal flow rate: 800 l/min 6mm 14mm Magnetic valve Aluminium (die-cast) IP65 50°C 50°C -5°C -5 up to 50 °C -5°C According to ISO 8573-1:2010 compressed air [7:4:4] NBR
