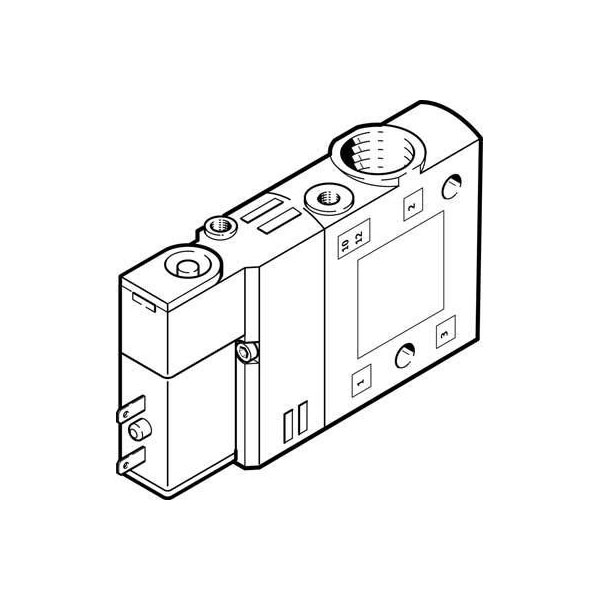

FESTO 196929 CPE magnetic valve G 1/8 6mm width energy efficient

The Festo magnetic valve, part number 196929, features a nominal width of 6 mm and is equipped with a G 1/8 connection. Designed for efficient water flow control, this all-fluid valve is suitable for various industrial applications. It provides reliable performance in automated systems, enhancing operational efficiency.

Type	Magnetic valve
Maximum Operating Pressure	8bar
Minimum Operating Pressure	2.5bar
Connection	G 1/8
Enclosure material	Aluminium (die-cast)
Function	3/2 normally closed mono-stable
IP Rating	IP65
Max. ambient temperature	50°C
Max. media temperature	50°C
Media temperature (min.)	-5°C
Media temperature (range)	-5 up to 50°C
Min. ambient temperature	-5°C
Misc Attribute	Normal nominal flow rate: 900 l/min
Nominal width	6mm
Operating medium	According to ISO 8573-1:2010 compressed air [7:4:4]
Sealant	NBR
Weight	60g
Width	14mm
