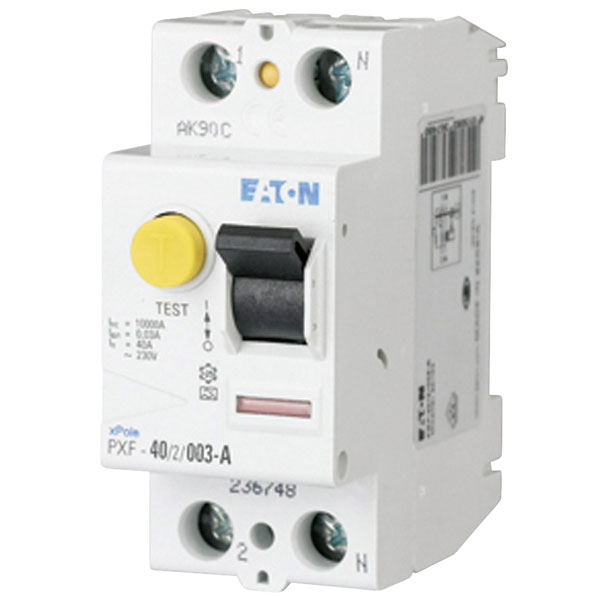

Eaton 236748 FI-Circuit Breaker Moeller 2 pin 40A

The Eaton 236748 is a DIN Rail 2-Pole 40A Residual Current Circuit-Breaker with Tripping Characteristic A from the PXF-A Series. The circuit breaker has a Trip Sensitivity of 30mA. The DIN Rail Mount Protects in particular non-smoothed forms of DC fault currents (type A according to EN 61 008). The circuit breaker is fitted with function test button.

• For 35 mm DIN rail mounting
• PXF-A series, 2-pole
• Fault current circuit breaker, conditionally current-proof up to 250A
• Pulsed current sensitive, type A
• Contour and bus bar compatible with other P-Series devices
• Double terminal with lift / jaw top and bottom
• Free selection of rail arrangement top and bottom
• Free terminal space despite bus bar mounting
• Protects from special non-smoothened forms of DC fault currents
• Real contact position display
• Triggered state display through signal contact
• Supplied for 40A
• Manufacturer's part: Eaton 236748
