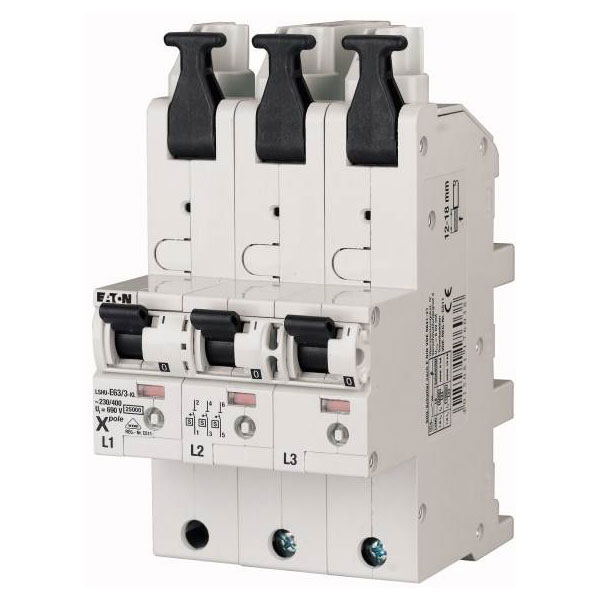

Eaton 119717 LSHU-E50/3-KL Main RCCB 50 A 230/400 V Selectivity

Eaton's 119717 LSHU-E50/3-KL is a main RCCB with a rated current of 50 A and operational voltages of 230 V and 400 V. This selective main circuit breaker is designed for safety and reliability in residential and commercial electrical systems. It is typically used to protect against electrical faults and ensure the safe operation of circuits.

Type	Main RCCB
Compatible with (details)	Busbar mounting
Concurrently switching neutral conductor	FALSE
Construction size according to DIN 43880	6
Degree of protection (IP)	IP40
Depth	99.50mm
Dim	(W x H x D) 81 x 151.30 x 99.50 mm
Factory colour	White
Frequency	50Hz
Height	151.30mm
Misc Attribute	LSHU-E50/3-KL
Mounting method	Busbar
Nominal current	50A
Nominal current - rounded value	50A
Number of pins	3
Number of Poles	3
Operating voltage	440V
Overvoltage category	4
Pollution degree	3
Rated Current	50A
Rated insulation voltage Ui	690V
Rated surge voltage invariability	6kV
Rated switching capacity	25kA
Rated voltage	400V
Release characteristic	E
Release characteristics	E/25kA
Width	81mm
