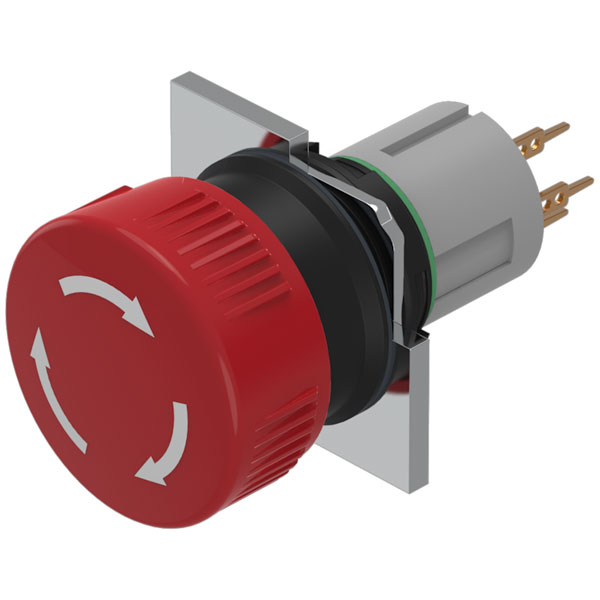

EAO 51-253.026 Stop switch with twist release red LL 1NC+1NO U D25 gold

EAOs 51-253.026 represents a robust stop switch equipped with a twist release mechanism, identifiable by its distinct red Lexan lens. The switch is configured with one normally closed (NC) and one normally open (NO) contact, designed for diverse emergency stop applications where immediate interruption of electrical circuits is required. Engineered for a panel cut-out size of 25 millimetres, this stop switch is tailored to meet the exacting standards of industrial environments, particularly within automation and machinery control systems.

Type	Stop Switch
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 24,5mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Release Type	Twist To Unlock
Switching Action Concat	Maintained
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01496
