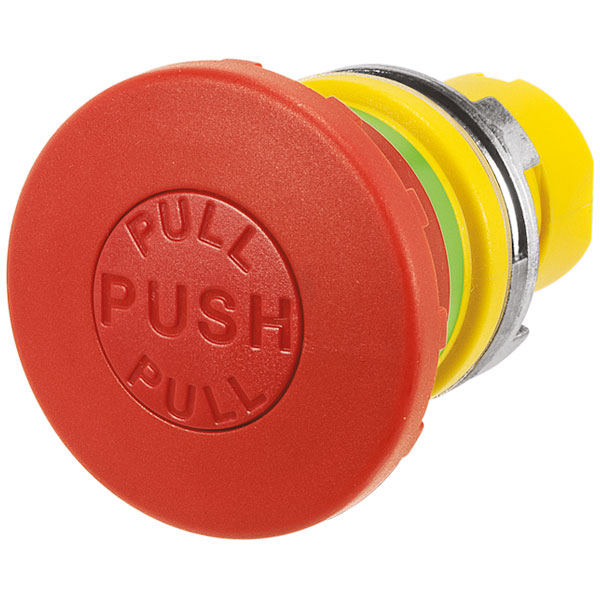

EAO 46-2737.1920.000 Mushroom push-button Ø 40, pull release, red

EAO 46-2737.1920.000 is a mushroom push-button designed for precision and reliability in control applications. The push-button has a diameter of 40 mm and a pull release mechanism, and its bright red colour ensures high visibility for operators. Constructed for durability, this component is typically used in industrial machinery and emergency stop applications where immediate, fail-safe responses are required. It is engineered to meet stringent safety standards, making it suitable for environments where robust operation under stress is paramount.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Dimensions Concat	Ø 40mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Dimension Concat	Ø 40mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	4
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Release Type	Pull Unlock
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Iec En 60947-5-5, Ul508, Uni En Iso 12100, Uni En Iso 13850
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.036
