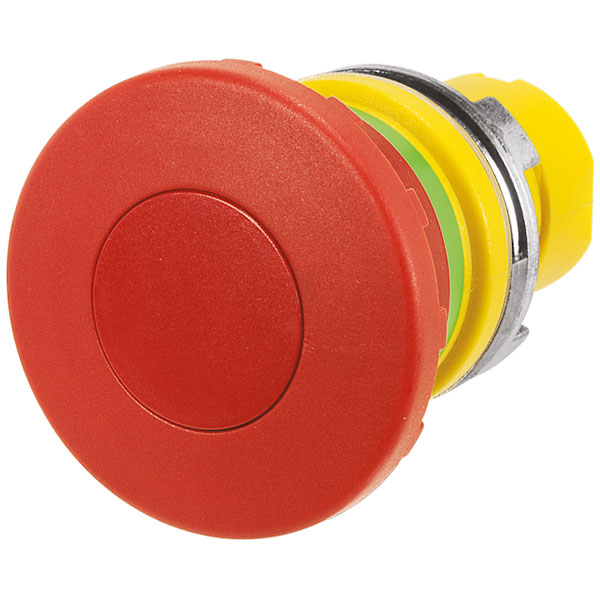

EAO 46-2531.1920.000 Mushroom push-button Ø 40, momentary, red

EAO 46-2531.1920.000 is a high-quality mushroom push-button designed for momentary operation. With a diameter of 40 mm, this red push-button is suitable for applications where immediate tactile response is required, such as emergency stop functions, machine control panels, and industrial machinery interfaces. It is engineered to provide reliable performance and durability in a variety of environments. The robust design ensures it can withstand frequent use and potential exposure to harsh conditions, making it an ideal choice for industrial environments.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Yellow
Front Bezel Material	Plastic
Front Dimension Concat	Ø 40mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.036
