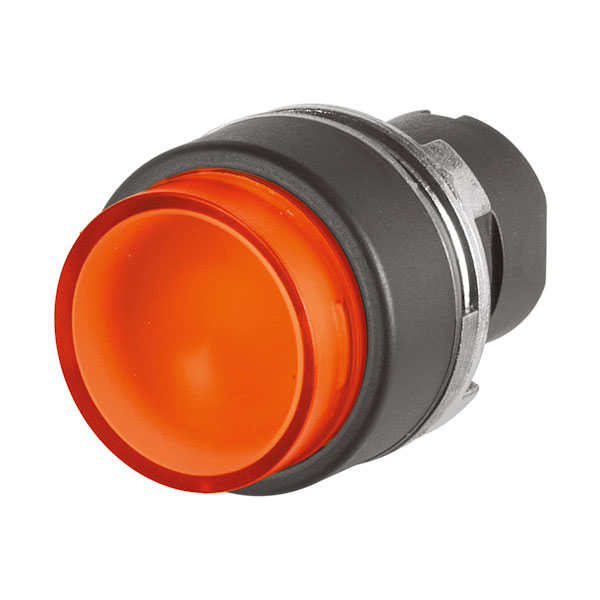

EAO 46-2231.12F0.000 Projecting push-button, illuminated, orange

EAO, 46-2231.12F0.000, is a projecting push-button that features illumination and an orange actuator, designed for precision and reliability in industrial control systems. This component is equipped with robust mechanical elements ensuring durability under strenuous usage conditions, while the illuminated feature aids in operation visibility in low-light settings. The push-button is typically used in machinery panels, automation systems, and human-machine interface (HMI) applications, where tactile feedback and visual confirmation are imperative.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Orange
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Raised
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.022
