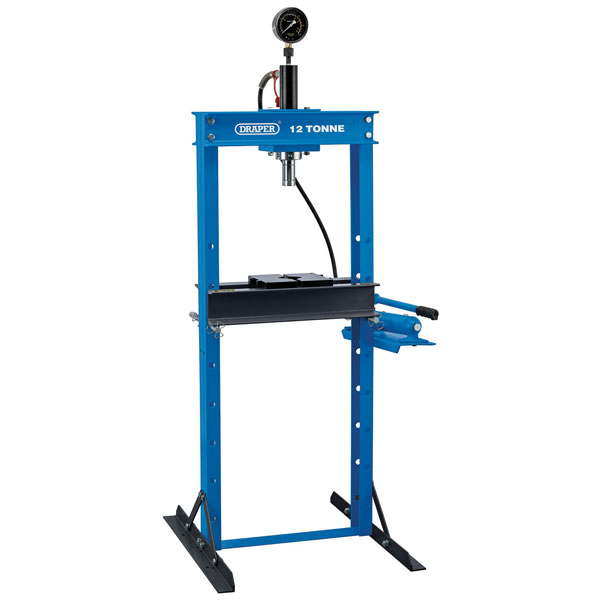

Draper 70539 Floor Press, 12 Tonne Manufacturers P/N - 70539

There are eight adjustable table heights: 224, 344, 464, 584, 704, 824, 944 and 1064mm.

The glycerine liquid filled gauge provides increased accuracy and prolonged service life.

An anti-kink coil is fitted to each end of the flexible hose for increased protection.

Fitted with a safety valve to pretend the press from overloading.

Complete with two flat V-shaped blocks.

Fully tested and certified for safe, reliable operation.

• Capacity: 12 tonne
• Frame Depth: 80mm
• Frame Height: 1350mm
• Frame width: 630mm
• Max Table to Ram Height: 917mm (max.)
• Min Table to Ram Height: 77mm (max.)
• Overall height: 1655mm
• Ram stroke: 180mm
• Ram Type: Sliding
• Working table width: 455mm
• Weight: 78.5kg
