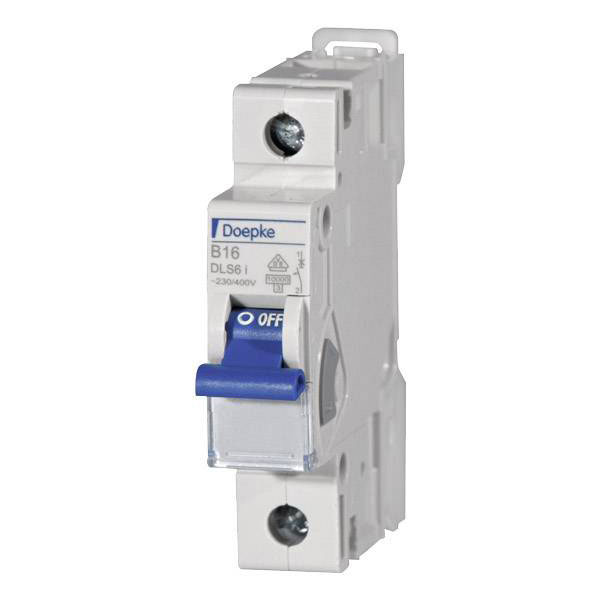

The Doepke circuit breaker, model 09916023, is a 1-pin device with a 16 A current rating designed for 230 V systems. This breaker provides protection against overcurrent conditions, handling up to 10 kA short-circuit currents. It is typically used in residential or commercial electrical installations to safeguard circuits from overloads and short circuits.
| Type |
Circuit breaker |
| Current Rating |
16A |
| Voltage Rating - AC |
230V AC |
| No. of Poles |
1 |
| Tripping Characteristics |
B Curve |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-25 - 70°C |
| Built-in depth |
68mm |
| Colour |
Multicolour |
| Concurrently switching neutral conductor |
false |
| Connectable conductor cross section multi-wired |
1.5 - 25mm² |
| Connectable conductor cross section solid-core |
0.5 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
16A |
| Degree of protection (IP) |
IP20 |
| Depth |
75.2mm |
| Dim |
(W x H x D) 17.7 x 83 x 75.2 mm |
| Explosion-proof |
false |
| Flush-mounted installation |
false |
| Frequency |
50 - 60Hz |
| Height |
83mm |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of poles (total) |
1 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
4.2W |
| Rated current |
16A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
2000V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
10kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
N/AkA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
N/AkA |
| Rated voltage |
400V |
| Voltage Rating |
230V |
| Voltage type |
AC/DC |
| Weight |
0.12 |
| Width |
17.7mm |
| Width in number of modular spacings |
1 |
