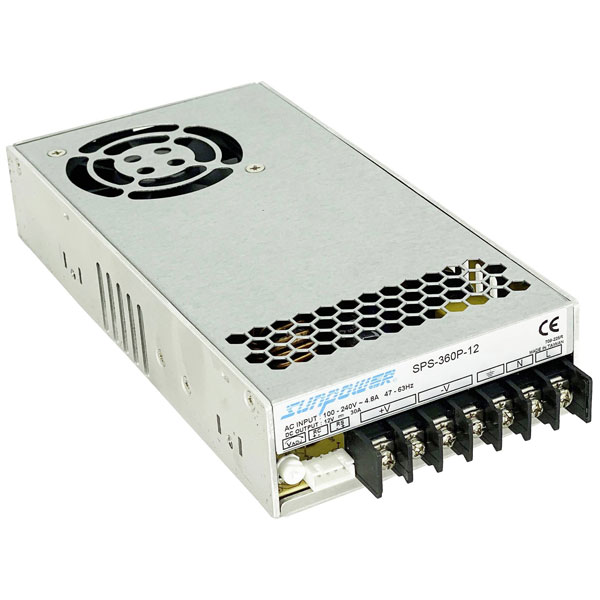

Dehner Elektronik SPS 360P-12 Industrial PSU 12VDC 30A 360W High Efficiency

Dehner Elektronik
Order Code:

02-4704

Brand: Dehner Elektronik MPN: SPS 360P-12 (12VDC) EAN-13: 4251125203470
Qty Unit Price (Ex VAT)
1+ £150.32
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Dehner Elektronik SPS 360P-12 is an industrial PSU that provides 12 V DC at 30 A, equating to a power output of 360 W. It is a PCB mount power supply unit with solder lugs, suitable for applications requiring reliable power on printed circuit boards. Ideal for industrial environments, it supports effective PCB equipping for a robust power solution.
Connection Screw terminal
Dim (L x W x H) 198 x 99 x 38 mm
Height 38mm
Length 198mm
Max. operating temperature (derating) 70°C
Max. output current 30A
Max. temperature 80°C
Min. temperature -40°C
Misc Attribute 1 Switched PSU
Misc Attribute 2 closed
Misc Attribute 3 DEHNER
MTBF 144000h
Number of Outputs 2
Operating temperature (max.) 50°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 30A
Output voltage (max.) 12V DC
Output voltage (min.) 12V DC
PFC Yes
Power 360W
PSU features Regulated
Type Industrial PSU
Width 99mm
