Dehner Elektronik SPE 200-05 SMPSU 5V 40A 200W Universal Input High MTBF

Dehner Elektronik
Order Code:

02-4682

Brand: Dehner Elektronik MPN: SPE 200-05 EAN-13: 4251125200912
Qty Unit Price (Ex VAT)
1+ £84.37
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

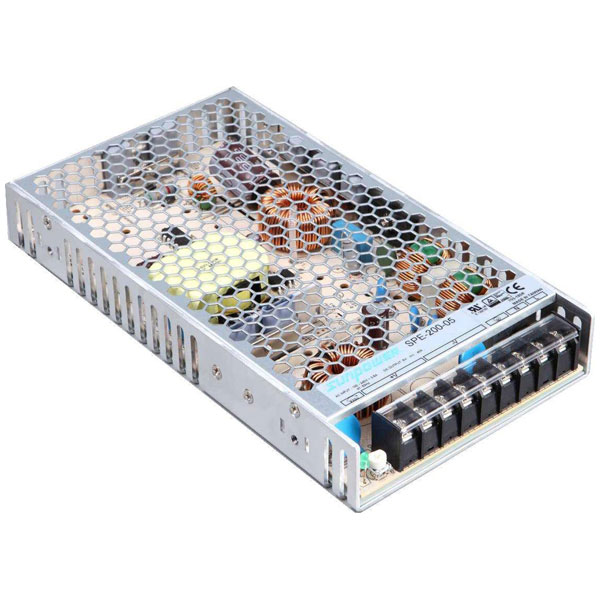

The Dehner Elektronik SPE 200-05 is a 200 W switched-mode power supply unit delivering 5 V DC at 40 A. It is a PCB mount PSU with solder lugs, designed for integration into printed circuit boards. This power supply is typically used in electronic applications requiring compact and efficient energy conversion.
Connection Screw terminal
Dim (L x W x H) 212 x 115 x 30 mm
Height 30mm
Length 212mm
Max. operating temperature (derating) 70°C
Max. output current 40A
Max. temperature 85°C
Min. temperature -40°C
Misc Attribute 1 Switched PSU
Misc Attribute 3 closed
MTBF 177300h
Number of Outputs 1
Operating temperature (max.) 50°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 40A
Output voltage (max.) 5V DC
PFC Yes
Power 200W
PSU features Regulated
Type SMPSU
Width 115mm
