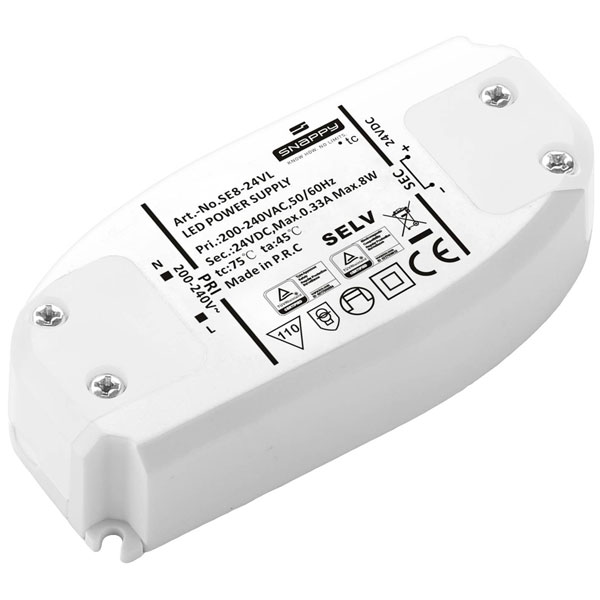

Dehner Elektronik SE 8-24VL LED Driver 8W 0.33A 24V DC Indoor Compact Design

Dehner Elektronik
Order Code:

02-4662

Brand: Dehner Elektronik MPN: SE 8-24VL (24VDC) EAN-13: 4251125203333
Qty Unit Price (Ex VAT)
1+ £8.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 12/01/2026

The Dehner Elektronik SE 8-24VL 24VDC LED transformer is a constant voltage LED driver providing 8 W output and 0.33 A current. It is designed for LED strip lighting and similar applications requiring stable power supply. Typical uses include powering LED strips in residential or commercial settings.
Type LED transformer
Output Voltage 24V DC
Max Output Power 8W
Output Current 330mA
Input Voltage 264V AC
Colour White
Connection Screw terminal
Dimensions (L x W x H) 95 x 45 x 20 mm
Height 20mm
IP Rating IP20 (when built in)
Length 95mm
Max. output current 0.33A
Max. temperature 45°C
Min. input voltage 180V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
Number of Inputs 1
Number of Outputs 1
Protection Class IP20
Test mark IEC / EN 61347-1, IEC / EN 61347-2-13, UL8750, EN 55015, EN 61547, EN 61000-3-2 Class C
Width 45mm
