Dehner Elektronik SE 20-24VF LED Transformer 24VDC 20W for LED Lighting

Dehner Elektronik
Order Code:

02-4660

Brand: Dehner Elektronik MPN: SE 20-24VF (24VDC) EAN-13: 4251125203371
Qty Unit Price (Ex VAT)
1+ £12.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

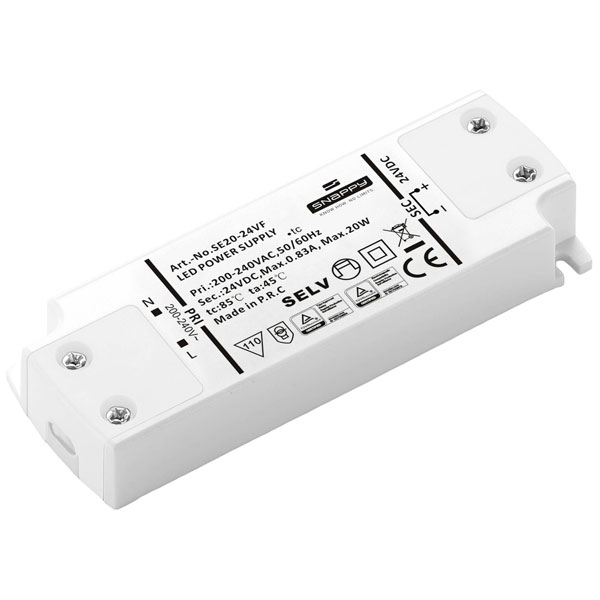

Dehner Elektronik's SE 20-24VF (24VDC) LED transformer provides a constant voltage of 24 V DC and supports up to 20 W with a current of 0.833 A. It includes surge protection and is approved for use on furniture. Typical applications include powering LED strips and other low-voltage LED installations.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 103 x 35.5 x 16 mm
Factory colour White
Height 16mm
Input voltage (max.) 264V AC
IP Rating IP20 (when built in)
Length 103mm
Max. output current 0.833A
Max. power 20W
Max. temperature 45°C
Min. input voltage 180V AC
Min. temperature -20°C
Misc Attribute Constant voltage
Number of Inputs 1
Number of Outputs 1
Operating Voltage 240V AC
Output current (max.) - rounded 833mA
Output voltage (max.) 24V DC
Output voltage (min.) 24V DC
Power range 20 W (max)
Protection Class IP20
Test mark IEC / EN 61347-1, IEC / EN 61347-2-13, UL8750, EN 55015, EN 61547, EN 61000-3-2 Class C
Width 35.5mm
