Dehner Elektronik SE 20-12VF LED Transformer 20W 12VDC Surge Protected

Dehner Elektronik
Order Code:

02-4659

Brand: Dehner Elektronik MPN: SE 20-12VF (12VDC) EAN-13: 4251125203364
Qty Unit Price (Ex VAT)
1+ £11.99
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
72 in stock, despatched in 4 working days

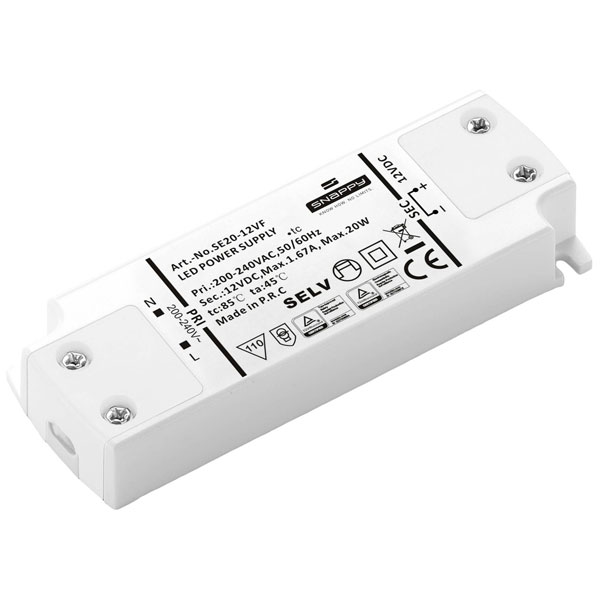

The Dehner Elektronik SE 20-12VF (12VDC) LED transformer is a constant voltage LED driver with a power output of 20 W and an output current of 1.67 A at 12 V DC. It includes surge and overvoltage protection, making it suitable for LED lighting applications, such as LED strip lighting. This transformer is approved for use on furniture, ensuring safe integration in various environments.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 103 x 35.5 x 16 mm
Factory colour White
Height 16mm
Input voltage (max.) 264V AC
IP Rating IP20 (when built in)
Length 103mm
Max. output current 1.67A
Max. power 20W
Max. temperature 45°C
Min. input voltage 180V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 1.67A
Output current (min.) 1.67A
Output voltage (max.) 12V DC
Output voltage (min.) 12V DC
Power range 20 W (max)
Protection Class IP20
Test mark IEC / EN 61347-1, IEC / EN 61347-2-13, UL8750, EN 55015, EN 61547, EN 61000-3-2 Class C
Width 35.5mm
