Dehner Elektronik ATM 065T-F120 AC/DC 12V 5A 65W Medical PSU 2MOPP

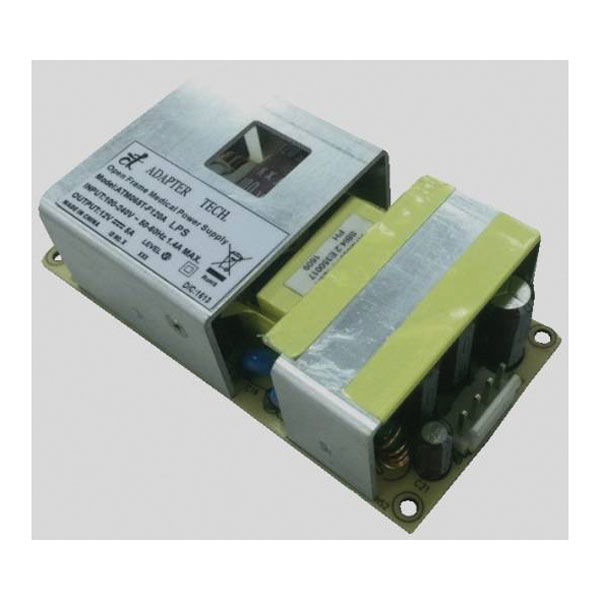

Image Representative of Range

Dehner Elektronik ATM 065T-F120 AC/DC 12V 5A 65W Medical PSU 2MOPP

Dehner Elektronik
Standard range
Order Code:

02-4566

Brand: Dehner Elektronik MPN: ATM 065T-F120 open frame
Qty Unit Price (Ex VAT)
1+ £21.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

Dehner Elektronik's ATM 065T-F120 open frame AC/DC PSU module provides a power output of 12 V DC at 5.0 A, with a total power rating of 65 W. It is a printed circuit board power supply unit with solder lugs, making it ideal for PCB mounting applications. This module is suited for various electronic devices requiring a compact and efficient power supply solution.
Type AC/DC PSU module (open frame)
Connection Connector
Dim (L x W x H) 100 x 50 x 32 mm
Height 32mm
Input voltage (max.) 240V AC
Length 100mm
Max. output current 5.0A
Max. temperature 50°C
Min. input voltage 100V AC
Min. temperature 0°C
Misc Attribute 1 ATM 065T-F120 open frame
Misc Attribute 2 Switched PSU
Misc Attribute 3 open
MTBF 300000h
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 5A
Output voltage (max.) 12V DC
Power 65W
PSU features Regulated
Weight 140g
Width 50mm
