DEGSON DG350-3.5-02P-14-00AH-1 Screw Terminal 2 Pins 2mm² Green 1pc

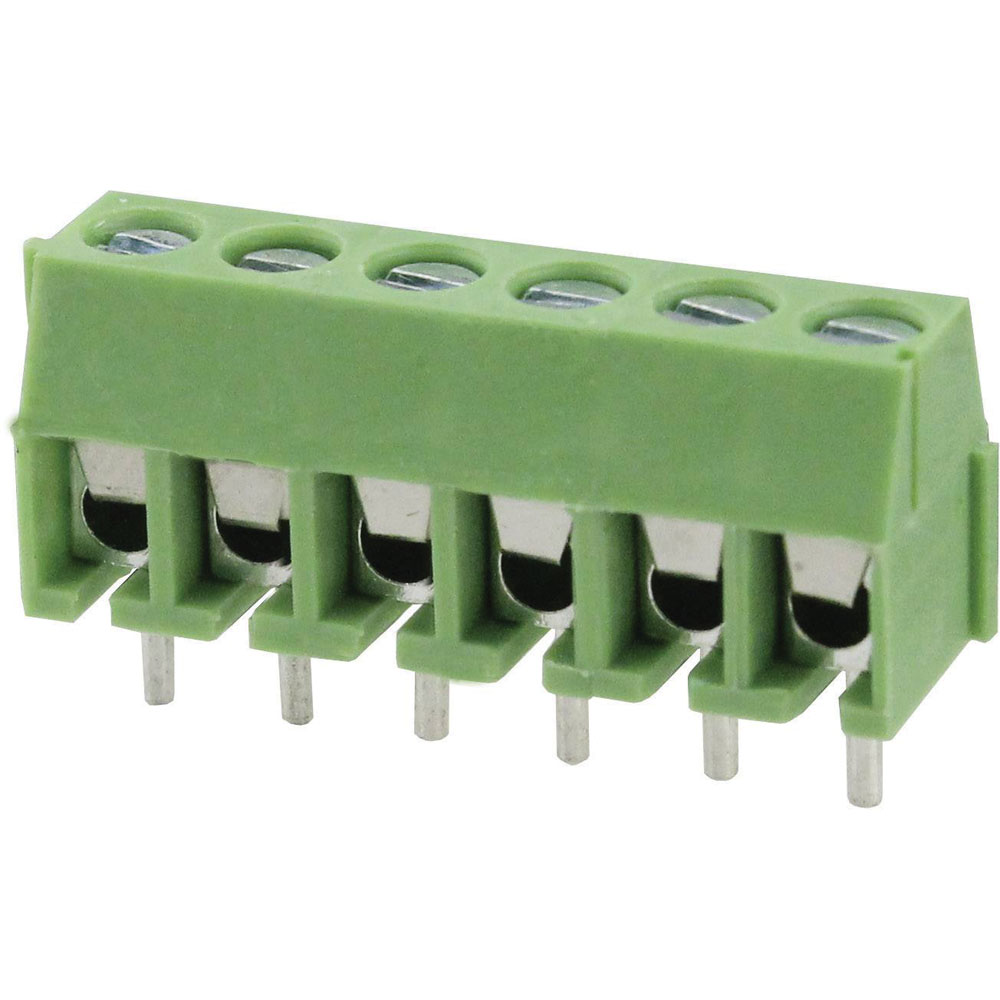

Image Representative of Range

DEGSON DG350-3.5-02P-14-00AH-1 Screw Terminal 2 Pins 2mm² Green 1pc

Degson
Standard range
Order Code:

02-4428

Brand: Degson MPN: DG350-3.5-02P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £0.196
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
608 in stock, despatched in 4 working days

The DEGSON DG350-3.5-02P-14-00AH-1 is a green screw terminal block designed for printed circuit boards with a capacity of 2 mm² and two pins. It features wire protection and is ideal for applications requiring reliable electrical connections in industrial or electronic setups. This robust component helps ensure secure and stable connectivity in a variety of installations.
No. of rows 1
Actuation direction Perpendicular (to the PCB)
AWG (min.) 24
AWG max. 18
Connector orientation Parallel (to the PCB)
Contact material Brass tin plated
Cross section (flexible) (max.) 2mm²
Cross section (flexible) (min.) 0.32mm²
Cross section (inflexible) (max.) 2mm²
Cross section (inflexible) (min.) 0.32mm²
CS 3.5mm
Enclosure material Polyamide 6.6
Factory colour Green
Height 11.90mm
Length 6.80mm
Manufacturer part # DG350-3.5-02P-14-00AH-1
Min. stripping length 5mm
Misc Attribute DG350-3.5-02P-14-00AH
Nominal current 7A
Nominal current - rounded value 7A
Nominal voltage 300V
Number of pins 2
Pins per row 2
Series DG350
Stripping length (max.) 6mm
Type Screw terminal
Weight 0.90g
Width 7.00mm
Wire protection Yes
