Comatec TBD201812F4 Rail-Mounted PSU 12V AC 1.5A 18VA Grey ABS Plastic

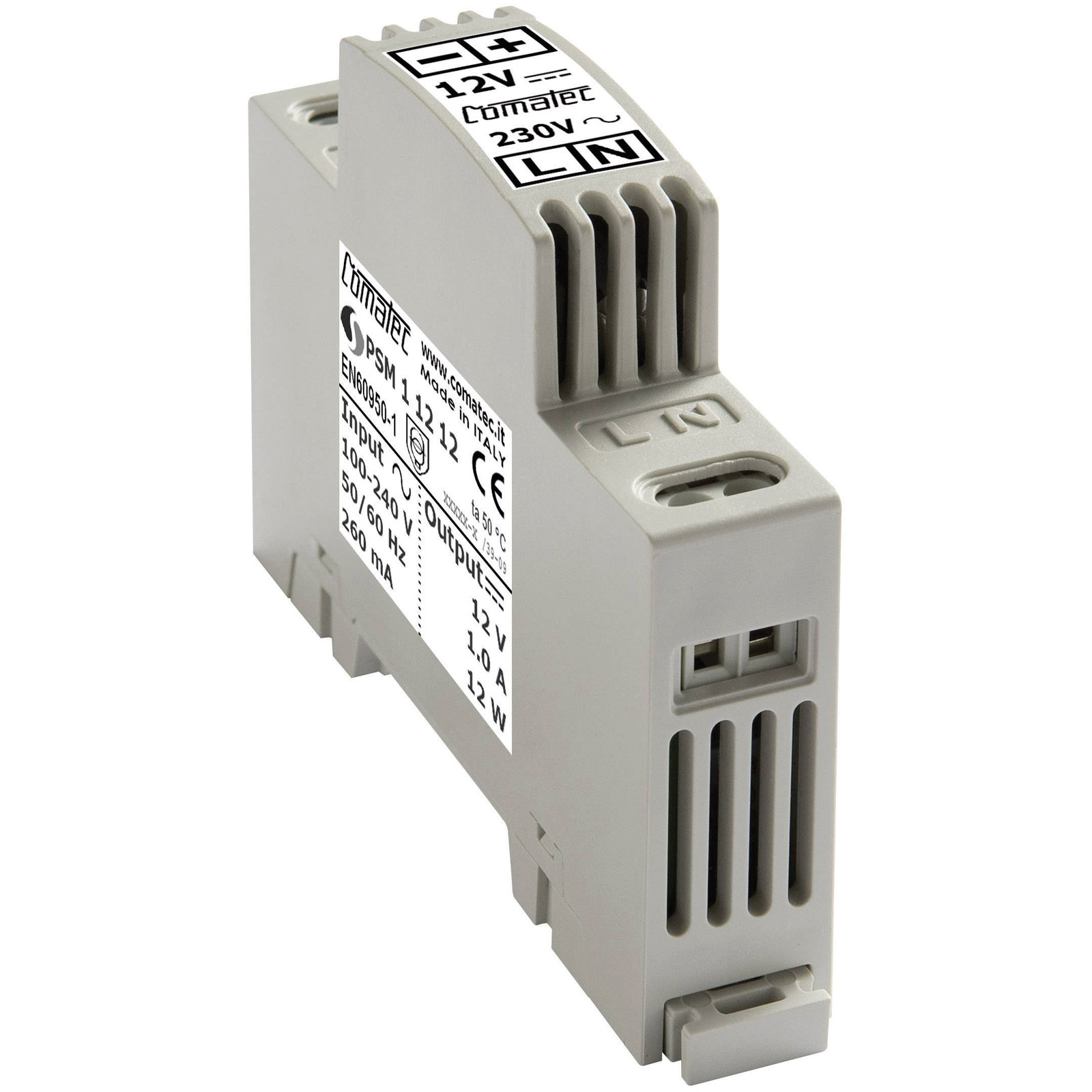

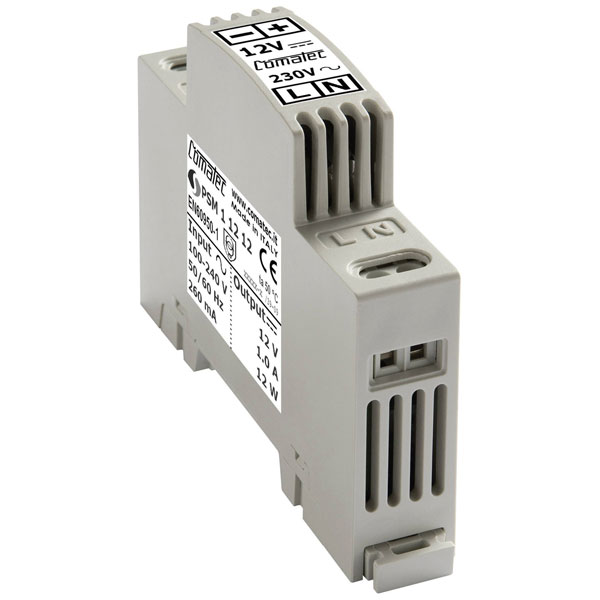

Image Representative of Range

Comatec TBD201812F4 Rail-Mounted PSU 12V AC 1.5A 18VA Grey ABS Plastic

Comatec
Standard range
Order Code:

08-7872

Brand: Comatec MPN: TBD201812F4 EAN-13: 2050010732819
Qty Unit Price (Ex VAT)
1+ £17.46
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
34 in stock, despatched in 4 working days

The Comatec TBD201812F4 rail mounted PSU (DIN) provides a 12 V AC output at 1.5 A with an 18 VA capacity. As a robust industrial power supply unit, it is designed for easy installation on DIN rails. This unit is suitable for supplying power to various industrial equipment and control systems.
Type Rail mounted PSU (DIN)
Ambient temperature -5 - +50°C
Dim (L x W x H) 94 x 72 x 68.50 mm
Frequency 50 - 60Hz
Height 68.50mm
Input voltage 230V AC
Input voltage (max.) 253V AC
IP rating IP20
Length 94mm
Manufacturer part # TBD201812F4
Max. output current 1.5A
Max. temperature +40°C
Min. input voltage 207V AC
Min. temperature -5°C
Misc Attribute TBD201812F4
Nominal input voltage 230 V/AC
Output current (max.) - rounded 1.5A
Output voltage (nominal) 12V AC
Power 18VA
Primary Voltage 230V AC
Standards EN61558 / EN55022/B
Weight 580g
Width 72mm
