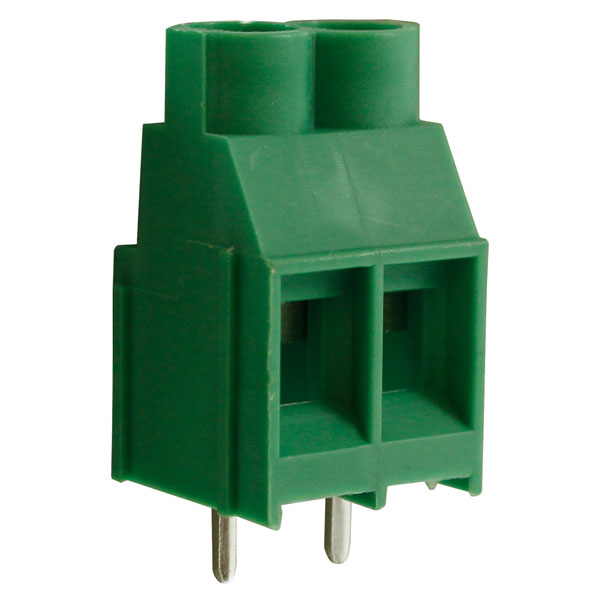

CamBlock Plus CTBP04VY/2 6.35mm High Power Pcb Terminal Block 2 Pole

This 2-pole high power rising clamp terminal block is part of the CamBlock Plus range from CamdenBoss. These green blocks are made from flame retardant polyamide.

• Double interlocking mechanism for increased strength
• Moulded in UL94-V0 flame-retardant PA66
• Professional rising clamp terminals
• Guided pin alignment
• Wire capacity 4mm² (26 to 10AWG)
• Captive screws
• Pitch 6.35mm
• Current rating 30A
• Length 12.7mm
• Width 12.7mm
• Height 21.5mm
• Manufacturer's part CTBP04VY/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Pitch	6.35mm
No. of Ways	2
Mounting Type	Through Hole
Mounting Direction	Vertical
Wire Gauge (AWG)	30 - 10 AWGmm²
Wire Termination	Rising Clamp
Colour	Green
Current Rating	30A
No. of Levels	1
Voltage Rating	300V

Technical Specification
