Burgess F4T7Y1UL Microswitch 250V AC 5A On/(On) IP40 Ultra Durable

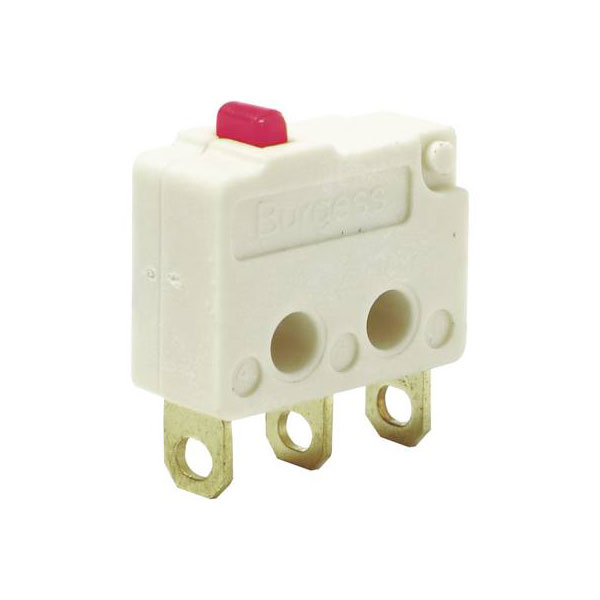

Image Representative of Range

Burgess F4T7Y1UL Microswitch 250V AC 5A On/(On) IP40 Ultra Durable

Burgess
Order Code:

08-7002

Brand: Burgess MPN: F4T7Y1UL EAN-13: 2050000382437
Qty Unit Price (Ex VAT)
1+ £6.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The Burgess F4T7Y1UL microswitch is a miniature switch with an operating voltage of 250 V AC and a current rating of 5 A. It features an IP40 rating, momentary action, and a single on/(on) switching configuration with dimensions of 12.8x10x5 mm. This switch is ideal for compact electronic applications requiring reliable and precise actuation.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 5A
Actuating Force 0.6N
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 5 x 12.8 x 10 mm
Height 10mm
IP Rating IP40
Length 5mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 1 changer
Switch position 1 x On/(On)
Switching Capacity 5 A/250V AC
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 12.8mm
