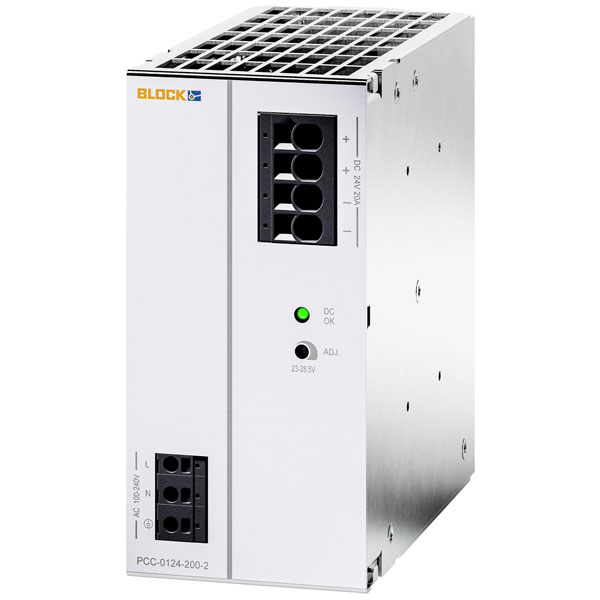

Block PCC-0124-200-2 SMPSU 24V DC 20A 480W Robust Compact Design

The Block PCC-0124-200-2 is a single-output industrial SMPSU that provides 24 V DC at 20 A, totalling 480 W. Designed for din rail mounting, this power supply unit is ideal for reliable operation in demanding industrial environments. Typical applications include powering machinery, control systems, and other industrial equipment.

Type	SMPSU
Nominal value output current 1	20A
Number of Outputs	1
Power Rating	480W
Depth	134mm
Dimensions (L x W x H)	134 x 62 x 127mm
Efficiency	93.6%
Height	127mm
Input voltage DC	90 – 264 V/AC; 90 - 374V
Inputs	1
Max. output current 1	20A
Maximum Temperature	+70°C
Min. temperature	-25°C
MTBF	500000h
Nominal Input Voltage	100 - 240 /ACV
Nominal value output voltage 1 [DC]	24V
Phases	1
Width	62mm
