Block PC-0224-050-0 Rail Mounted PSU 24V DC 5A 120W DIN Rail Compact

Name: Block PC-0224-050-0 Rail Mounted PSU 24V DC 5A 120W DIN Rail Compact
Brand: Block
Price: 102.53 GBP
Availability: InStock

Standard range

Order Code:

01-6373

Brand: Block MPN: PC-0224-050-0

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (8)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£102.53

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

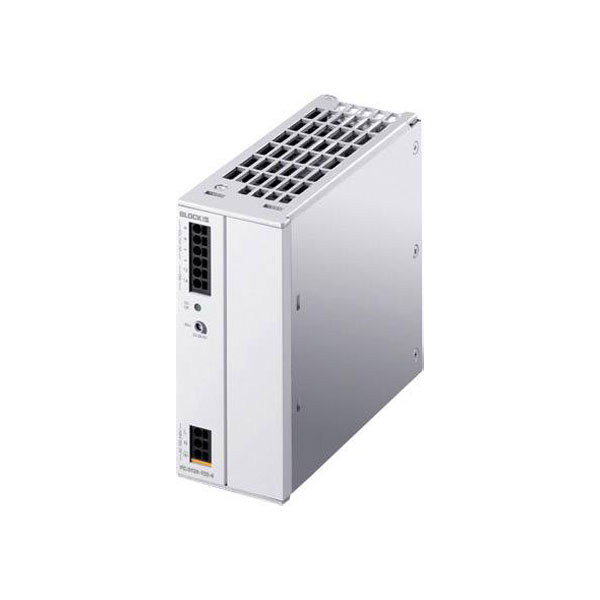

The Block PC-0224-050-0 is a rail mounted PSU (DIN) delivering 24 V DC at 5 A and 120 W with a single output. This industrial power supply unit is ideal for DIN rail installations due to its compact design and robust performance. It is commonly used in automated manufacturing environments and industrial control systems.

Type	Rail mounted PSU (DIN)
Connection	Push-in connector
Dim	(L x W x H) 126 x 42 x 127 mm
Efficiency	89%
Height	127mm
Input Voltage	180 – 550 V/AC 254 - 780V DC
Input voltage (max.)	550V AC
Inputs	1
IP rating	IP20
Length	126mm
Manufacturer part #	PC-0224-050-0
Max. output current	5A
Max. temperature	+70°C
Min. input voltage	180V AC
Min. temperature	-25°C
Misc Attribute 1	PC-0224-050-0
Misc Attribute 2	Synchronised
MTBF	500000h
No. of outputs	1
Nominal input voltage	200 - 500 V/AC
Output current (max.) - rounded	5A
Output type (power supply units)	Adjustable
Output voltage	24V DC
Output voltage (max.)	28.5V DC
Output voltage (min.)	23V DC
Output voltage (nominal)	24V DC
Phases	2
Power	120W
Weight	600g
Width	42mm
