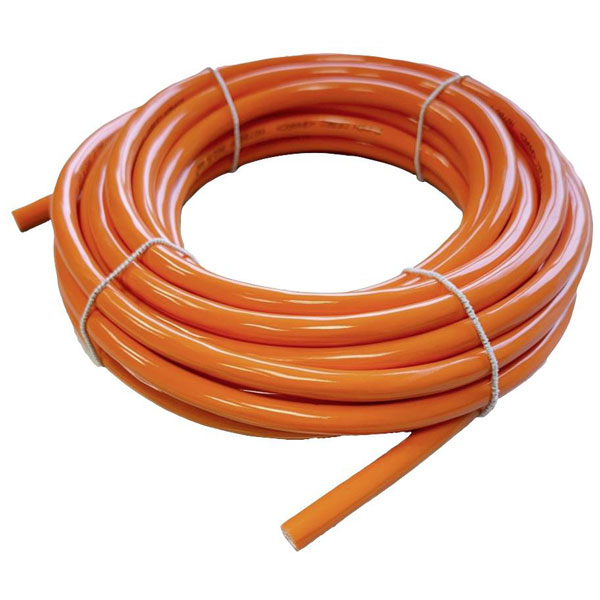

BKL 1513006-10 High-voltage Cable 10m Orange H05BQ-F 5G 0.75mm²

The BKL Electronic 1513006-10 is a high-voltage cable with a length of 10 metres and a cross-section of 0.75 mm². It features an orange PUR sheath for increased durability and flexibility, with an overall diameter of 8 mm. This cable is typically used in industrial and electrical installations where reliable high-voltage connections are required.

Colour	Orange
Number of Cores	5
AWG	Not Applicable
Length	10m
Conductor Cross Section	5 G 0.75mm²
Cable Diameter	8.00mm
Core layout	Copper; fine-wire
Halogen-free	Yes
Maximum Temperature	+90°C
Min. temperature	-40°C
Nominal Voltage	500V
Sold by Metre	No
Type	PUR-Leitung/H05 BQ-F/5G0,75mm²/orange/10m/AD: 8mm
