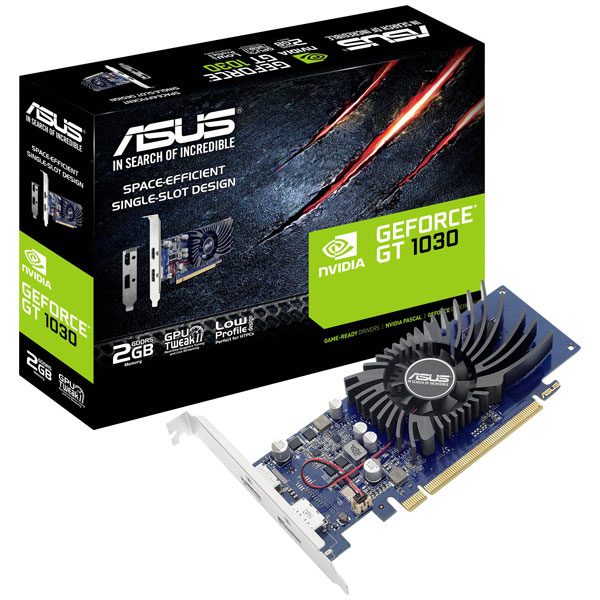

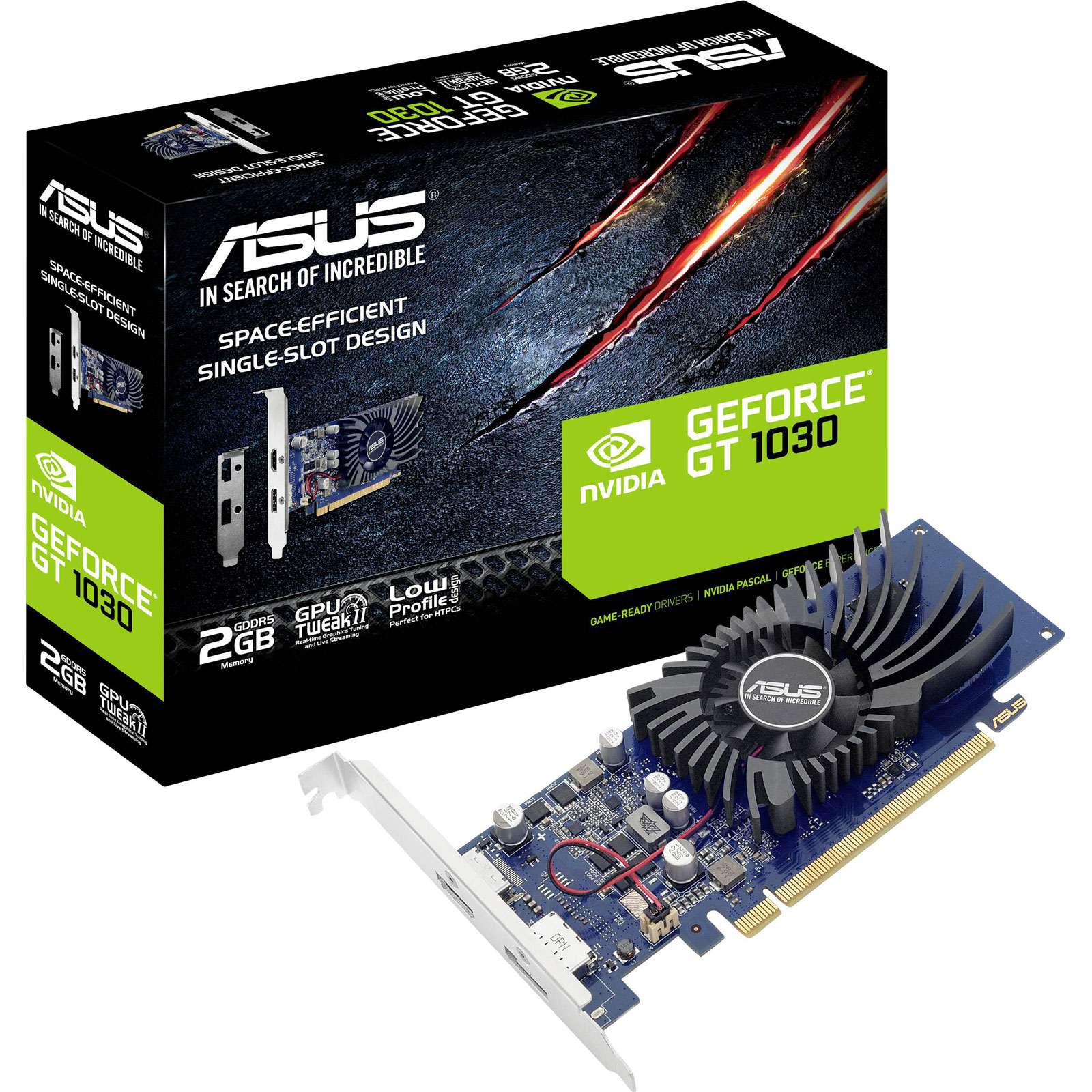

Asus 90Yv0At2-M0Na00 Nvidia Geforce Gt1030 Graphics Card 2Gb Pcie HDMI Display

Asus 90YV0AT2-M0NA00 features the Nvidia GeForce GT1030 graphics card with 2 GB of GDDR5 RAM, designed for efficient performance in computing environments requiring entry-level graphics capabilities. This card utilises a PCIe interface, ensuring compatibility with a wide range of modern motherboards, and supports HDMI and DisplayPort outputs, facilitating connection to various display devices. Its low-profile form factor makes it well-suited for compact and space-constrained systems, such as home theatre PCs and small form factor builds. Common engineering applications for this graphics card include basic graphical rendering tasks, display expansion, and acting as a dedicated GPU for systems requiring additional graphical processing power without the demands of high-end gaming or intensive computational tasks.

Type	Graphics Card
Bundled software	ASUS GPU Tweak
Bus System	PCIe
Cooling	Active
Cooling type	Active
CPU Speed	1266MHz
CUDA	Yes
CUDA cores	384
Depth	169mm
DirectX version	12.0
Discrete graphics card memory	2 GB
Display Resolution	7680 x 4320 Pixel
DisplayPorts quantity	1
Drivers included	Yes
Dual Link DVI	No
FireStream	No
Full HD	Yes
GPU Boost	1506MHz
GPU Brand	NVIDIA
Graphics card memory type	GDDR5
Graphics processor	GeForce GT 1030
Graphics processor family	NVIDIA
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI ports quantity	1
Height	69mm
Interface Type	PCI Express 3.0
Length	169mm
Maximum resolution	7680 x 4320 pixels
Memory bus	64 bit
Memory clock Speed	6008MHz
Memory interFace	64Bit
No. of DisplayPort	1
No. of HDMI ports	1
Number of fans	1 fan(s)
OpenGL Version	4.5
Package Type	Box
PhysX	Yes
Processor boost clock speed	1506 MHz
Processor frequency	1266 MHz
Product colour	Black, Blue
RAM	2GB
RAM type	GDDR5 RAM
Stream processors	384
TV tuner integrated	No
User guide	Yes
Width	21mm
Windows operating systems supported	Windows 10
