Alpha RD901F-40-15R1-B100K-00D Slide Potentiometer 40mm Linear 100k Ohm

Taiwan Alpha’s RD901F-40-15R1-B100K-00D is a precision slide potentiometer designed for variable resistance applications. This component features a linear resistance track with a total resistance of 100k Ohms and a slide travel distance of 40 mm, ensuring accurate and reliable performance in sensitive electronic circuits. This model is commonly used in audio mixing desks, control panels, and instrumentation devices where precise control over electrical signals is required. Its robust construction and reliable performance make it suitable for both commercial and industrial environments, providing engineers with a dependable option for fine adjustment of circuit parameters.

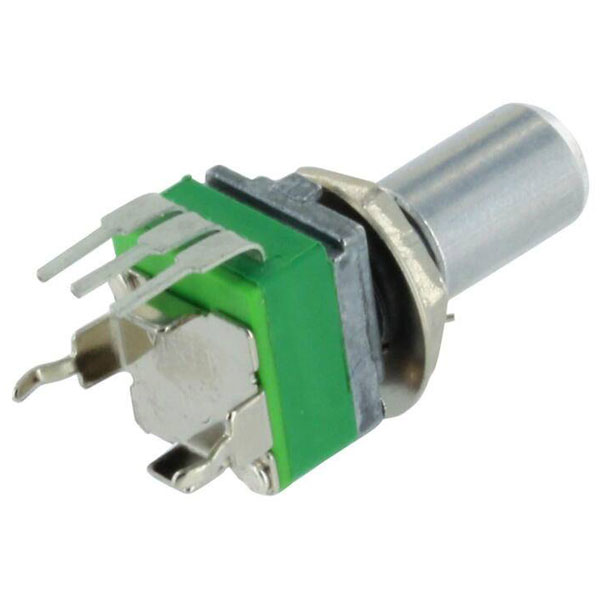

Type	Single turn rotary pot
Resistance	100kΩ
Power Rating	0.05W
Axle Diameter	9mm
Axle length	15mm
Axle Type	Metal
Connection	Print
Content	1
Cut-off Voltage	300V
Maximum Temperature	70°C
Mechanical Angle	300°
Minimum Temperature	10°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Switching voltage (max.)	50V AC
Thread Length	5mm
Thread Size	M7 x 0,75
Torque (max.)	2.5Ncm
