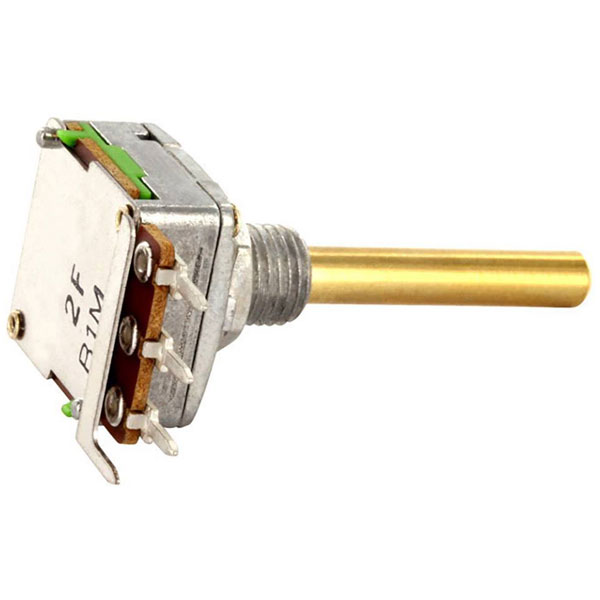

Alpha 63250-01400/B5K APM4B5KM Single turn rotary pot 200 mW 5 kΩ Slide Potent

Taiwan Alpha 63250-01400/B5K APM4B5KM is a single-turn rotary potentiometer designed for precision variable resistance applications, providing a resistance value of 5 kO with a power rating of 200 mW. This slide potentiometer features a robust construction ideal for use in audio equipment, signal processing, and control circuitry where accurate resistance adjustment is essential. The slide mechanism allows for smooth and responsive motion, ensuring reliable performance in mono-channel circuits. Its design is suited to a variety of industrial and consumer applications, facilitating easy integration into both new designs and existing systems requiring adjustments of electrical signals.

Type	Single turn rotary pot
Resistance	5kΩ
Power Rating	200mW
Axle Diameter	4mm
Axle length	30mm
Connection	Print
Content	1
Cut-off Voltage	200V
Maximum Temperature	70°C
Mechanical Angle	270°
Minimum Temperature	-25°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M7
Tolerance ±	20%
Torque (max.)	2Ncm
