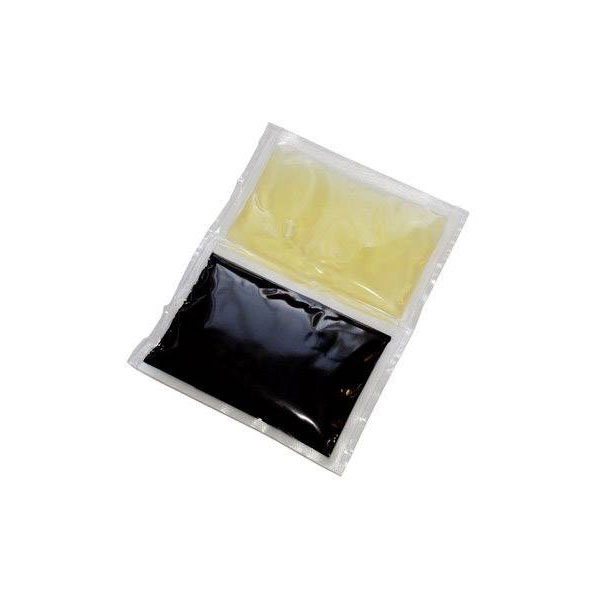

3M™ Scotchcast™ Flame-Retardant Resin Bag SC 2131, Size A, 74 ml

3M™ Scotchcast™ Flame-Retardant Compound 2131 is a 2-part polyurethane resin used for electrically insulating between connectors at low voltage as well as replacing cable jackets when splicing or repairing mine and portable cables. This permanent, liquid type resin has a unique formulation designed for use in the rugged conditions in which mine and portable cable operate. The high dielectric strength offers a very good electrical insulating property to the resin. 3M™ Scotchcast™ Flame-Retardant Compound 2131 has a low gel-point rating to ensure curing at the room temperature. The high tensile strength of the resin exhibits a semi-flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, preventing any fire hazard due to quick ignition. The flame retardant resin allows you to electrically insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi core cables. RoHS 2011/65/EU Compliant.
Semi-flexible

Has 17-minute gel time at 23 °C (73 °F)

Useful for replacing or repairing the jacket on both single- and multi-core power cables in rugged conditions

Designed for max temperature continuous use at 90 °C (194 °F)

Three different pack sizes available

Flame-retardant

Rated up to 1 kV

RoHS 2011/65/EU Compliant

Type	Epoxy resin
Dispensing Method	Packet
Weight / Volume	74ml
Base Unit (B) - Metric Cubic Dimension	1966.734 CCM
Base Unit (B) - Metric Gross Weight	200.2 G
Base Unit (B) - Metric Height Dimension	24.2 CM
Base Unit (B) - Metric Length Dimension	4.3 CM
Base Unit (B) - Metric Width Dimension	18.9 CM
Consumer (2) - Item Quantity	1.0
Consumer (2) - Metric Cubic Dimension	0.002 M3
Consumer (2) - Metric Gross Weight	0.239 KG
Consumer (2) - Metric Height Dimension	24.2 CM
Consumer (2) - Metric Length Dimension	4.3 CM
Consumer (2) - Metric Net Weight	0.1 KG
Consumer (2) - Metric Width Dimension	18.9 CM
Consumer (2) - Unit	EA
Country of origin	US
Flame Retardant	Yes
Flame Retardant.1	Yes
Flexibility	Flexible
Local Catalog ID	2131A
Material	Polyurethane
Material Number	7000092517
Material.1	Polyurethane
Material.2	Polyurethane
Maximum Operating Temperature (Celsius)	90.0
Maximum Operating Temperature (Celsius).1	90.0
Maximum Operating Temperature (Celsius).2	90.0
Maximum Operating Temperature (Celsius).3	90.0
Maximum Operating Temperature (Celsius).4	90.0
Maximum Operating Temperature (Celsius).5	90.0
Maximum Operating Temperature (Celsius).6	90.0
Maximum Operating Temperature (Celsius).7	90.0
Maximum Operating Temperature (Celsius).8	90.0
Maximum Operating Temperature (Celsius).9	90.0
Minimum Operating Temperature (Celsius)	-40.0
Minimum Operating Temperature (Celsius).1	-40.0
Minimum Operating Temperature (Celsius).2	-40.0
Minimum Operating Temperature (Celsius).3	-40.0
Minimum Operating Temperature (Celsius).4	-40.0
Minimum Operating Temperature (Celsius).5	-40.0
Minimum Operating Temperature (Celsius).6	-40.0
Sales Unit (S) - Unit	EA
